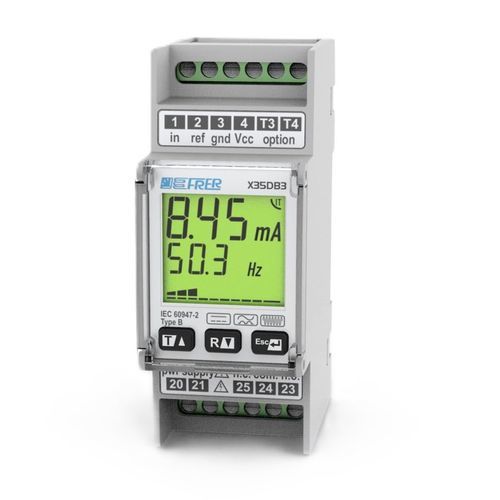

Earth-fault detector X35DB3

Overview
The Type B earth leakage relay X35DB3 detects DC, AC and high-frequency leakage currents automatically and intuitively. Designed for industrial and commercial electrical installations, the unit provides continuous and immediate insulation-status monitoring via a multi-coloured display and is supplied in a 2-module DIN-rail modular format.

Main features

• Product type: Type B earth leakage relay
• Series: X...DB3
• Model: X35DB3
• Format: modular, 2 DIN-rail modules
• Detection: continuous, alternating and high-frequency leakage currents
• Insulation monitoring: continuous, immediate via multi-coloured display

Available documentation and downloads

• Datasheet
• User manual
• Options documentation
• Certifications

Technical drawings

• DWG technical drawing
• PDF technical drawing

Multimedia

• Product gallery and technical images (photos, dimensional drawings, graphic views)
• Product videos and presentation clips

Technical specifications

• Series name: X...DB3
• Commercial model: X35DB3
• Product type: Type B earth leakage relay
• Module width: 2 DIN-rail modules
• Leakage detection: DC / AC / high-frequency
• Insulation status monitoring: continuous, immediate, multi-coloured display
• Documentation available: datasheet, manual, options, certifications, technical drawings (PDF/DWG)
• Multimedia: product images and manufacturer videos
