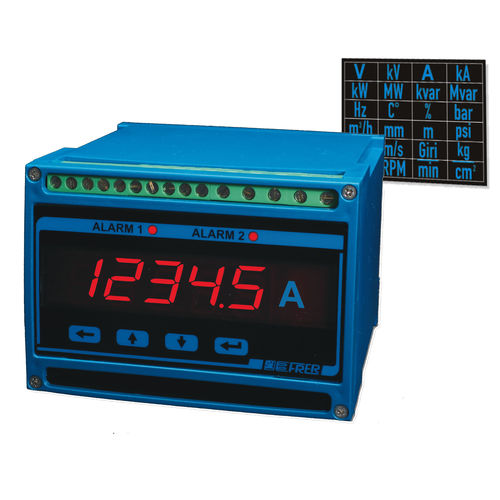

Current indicator XCO Series

speedvoltageAC

- DIN rail Programmable Digital Voltmeter and Ammeter with 2 alarms for back panel mounting for AC and DC current - DIN rail PROGRAMMABLE digital Indicator with 2 alarms for back panel mounting for DC inputs mA-V - DIN rail Programmable digital Frequency meter with 2 alarms, for back panel mounting - DIN rail Programmable digital Indicator with 2 alarms, for back panel mounting, for speed measurements from proximity (Namur - PNP - NPN) • programming - by front push button • max indication ±19999 programmable • red LED display h = 14 mm • bidirectional input (d.c.) yes • operating frequency 45÷65Hz • continuous overload 2 ln, 1,2 Vn • istantaneous overload 10 ln, 2 Vn (1sec.) • accuracy class : 0,2 (d.c.) - 0,35 (a.c.) • readings : 5/s • overrange indication : OVER • galvanic insulation : full • overvoltage category : CAT III 300V, CAT II 600V P.D. 2 • storage temperature : –30 ÷ +70°C • operating temperature : –10 ÷ +50°C • self estinguishing thermoplastic material : UL 94-V0 • protection : IP20 • connections : screw 4mm² max. • according to : CEI-DIN-VDE-IEC • alarms : 2 (1 SPDT + 1 SPST) • contacts rating : 10A, 250V AC1 • intervention indication : LED • alarm type : prog. MIN/MAX/OFF • safety : prog. normal/intrinsic (positive) • intervention delay : prog. OFF/0,1...999sec • hysteresis : prog. 0...100%
