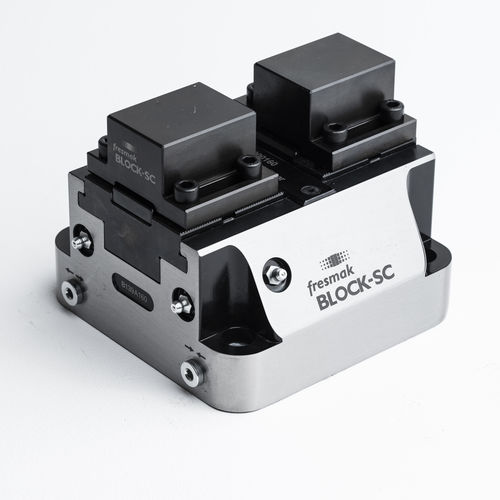

Hydraulic static blocks reach a pressure between 16 KN and 40 KN with an infeed power of 120 bar
Stroke range of 6 and 8mm
– Double effect actinoning
– Repeatability accuracy of 0.020 mm
– Long guides
– All basic components are hardened
– Basic surfaces are ground
– Entirely compact and fully protected against chips
– Total lubrication system. Greasing channels within the base jaw and base body
– The oil supply for machining and lubrication can be performed from the sides or the base of the body
– Hydraulic supply up to 120 bar
FUNCTIONING
Hydraulically actioned wedge clamping system: the multiplication of the hydraulic force is performed by actioning the wedges. These wedges are ground in order to give rigidity and precision to the set.
