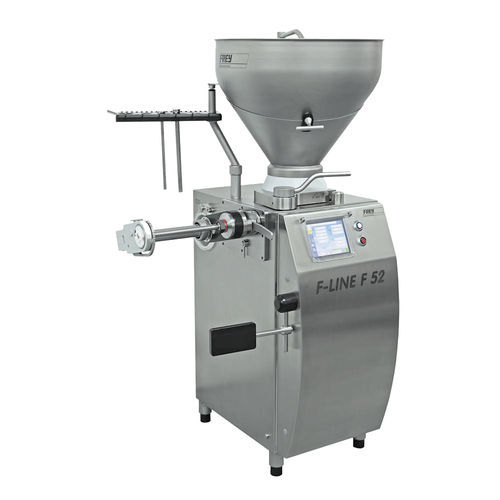

Automatic filler F-LINE F52 series

sausagemeatvacuum

Fully electronic, continuous vacuum stuffer for STRAIGHT FILLING, PORTIONING and LINKING with removable ADG04 linking gear and FREY High-Line e-drive. •Filling capacity up to approx. 2,300 kg/h •Filling pressure approx. 40 bar •Maschinengehäuse und FüllHopper made entirely of stainless steel •Divisible hopper approx. 25/90 liters •Portioning range 5 - 100,000 g (5 - 999 g in 0.1 g increments) •Portioning speed max. 450 portions/min. •Speed and pause lengths are infinitely variable •Flow measurement, piece counter, count-based auto stop •Flow-reverse mechanism and adjustable 1st portion weight •Memory for 200 filling programs •Electronic pulse control for clipping machines •Digitally-controlled vacuum system •Vacuum pump 16m³ •TC266 industrial PC control •8.4" TFT color display (800x600) •Touch operation, Motion control •Self-explanatory operation •CAN bus for high-speed communication •With attachments, Ethernet interface, USB interface •Total connected load: max. 5.3 KW •Rotary current 400 Volt, 50 Hz •Standard accessories incl. accessory holder
