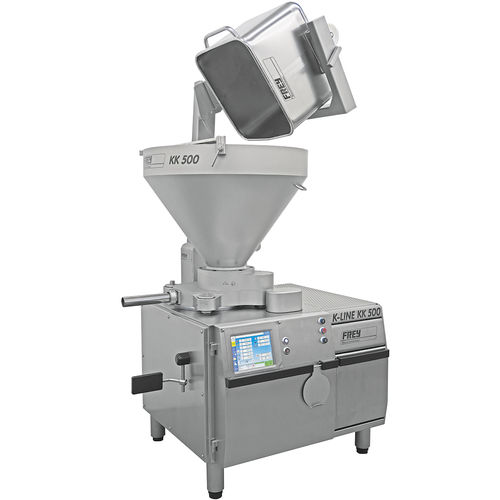

Fully electronic, continuous piston stuffer for STRAIGHT FILLING and PORTIONING with FREY servo drive.
This machine is equipped with an additional stirrer drive.
• Filling capacity up to approx. 7,000 kg/h
• (Inner and outer) machine housing and hopper made entirely of stainless steel
• Hopper approx. 250 liters
• Filling pressure up to max. approx. 25 bar
• integriertes Digitally-controlled vacuum system mit Füllstandsüberwachung im Vakuumbehälter
• Electrically locked step
• Total connected load max. 10.9 kW
• Rotary current 400 Volt, 50 Hz
• Including standard accessories
• FREY TC 733 touch control
• Industrial PC control
• 12 inch TFT color display (800 x 600 pixels)
• Intuitive operation by touching the display (touch operation)
• Motion control
• Self-explanatory operation
• CAN bus for high-speed communication with attachments
• Ethernet interface
• USB interface
• Table of contents and product name shown in the program
• Portioning range 50 - 100,000 g (50 - 999 g in 0.1 g increments)
• Portioning speed max. 350 portions/min.
• Speed and pause lengths are infinitely variable
• Flow measurement, piece counter, count-based auto stop
• Flow-reverse mechanism and adjustable 1st portion weight
• Error display
• Memory for 200 filling programs
• Electronic pulse control for clipping machines
• Integrated digital vacuum system with fill level monitoring in the vacuum tank
• Vacuum pump 40 m³
