Manual stencil printer printALL005

PCBlow-volumehigh-accuracy

Product overview

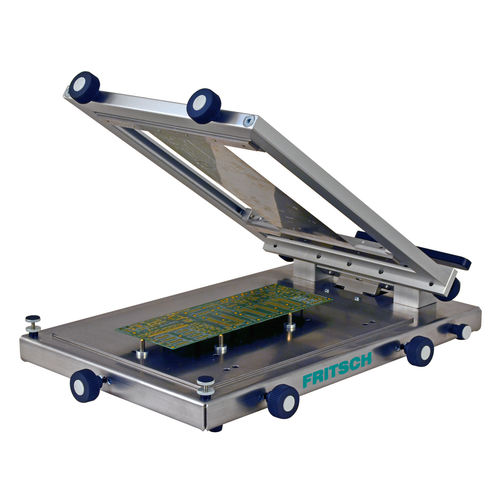

The printALL005 is a manual stencil printer with a stable base frame that produces reproducible prints for feature sizes down to 0.5 mm. Its solid construction ensures easy handling and consistent results, making it suitable for prototype manufacturing and small series production.

Functionality
The basic model supports printing on single- and double-sided PCBs. PCBs are placed on the base plate and mechanically fixed using adjustable holders. X-Y and theta positioning are set with knurled screws. A parallel lift guarantees clean separation of PCB and stencil and a precise print image.

Features

• Parallel lift for clean PCB–stencil separation
• Compatibility with various stencil frames
• Fast printing set-up with adjustable X-Y and theta
• Easy handling for prototype and small-series workflows

Comparison (table)
printALL005 | printALL005L
Dimensions: 400 x 640 x 150 mm, closed | Dimensions: 610 x 540 x 150 mm, closed
Base: 545 x 360 mm | Base: 570 x 445 mm
Stencil size: 460 x 30 x 350 mm | Stencil size: 560 x 30 x 350 mm
Weight: approx. 15 kg | Weight: approx. 17 kg

Technical specifications

• Type: manual stencil printer
• Stable base frame for high print quality
• Suitable for prototypes and small series
• Print capability: single- and double-sided PCBs
• Positioning: X-Y and theta adjustable by knurled screws
• Parallel lift for clean PCB–stencil separation
• Fine structure printing down to 0.5 mm
• Compatibility with various stencil frames
• Approx. weight: ca. 15 kg (printALL005)
• Base dimensions (printALL005): 545 x 360 mm
• Stencil size (printALL005): 460 x 30 x 350 mm
