Manual screen printer printALL005L

PCBuniversal

Product overview

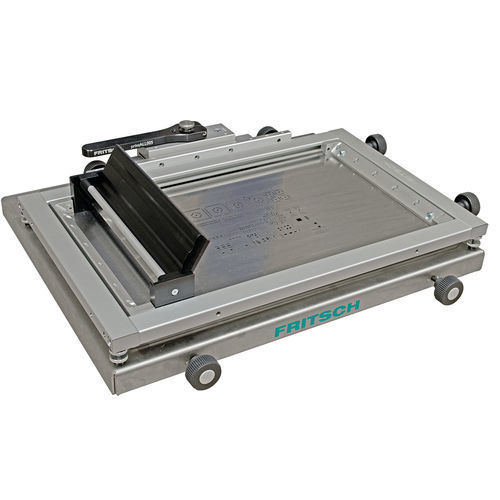

The manual stencil printer printALL005L is the enlarged version of the printALL005, designed for clean and reproducible stencil printing of fine structures. It shares the same robust construction and user-oriented concept as the printALL005 and accepts PCBs up to 430 x 270 mm.

Main features

• Parallel lift
• Various stencil frames (universal frame)
• Guided squeegee
• Fast printing set-up
• Easy handling
• Double-sided printing possible

Technical specifications and product comparison
printALL005 | printALL005L
Dimensions (closed): 400 x 640 x 150 mm | Dimensions (closed): 610 x 540 x 150 mm
Base: 545 x 360 mm | Base: 570 x 445 mm
Stencil size: 460 x 30 x 350 mm | Stencil size: 560 x 30 x 350 mm
Weight: approx. 15 kg | Weight: approx. 17 kg

Technical specifications

• Maximum PCB size: 430 x 270 mm
• Parallel lift
• Various stencil frames (frame size printALL005L: 560 x 30 x 350 mm)
• Guided squeegee
• Double-sided printing possible
• Dimensions (closed): 610 x 540 x 150 mm
• Base: 570 x 445 mm
• Stencil size: 560 x 30 x 350 mm
• Weight: approx. 17 kg
