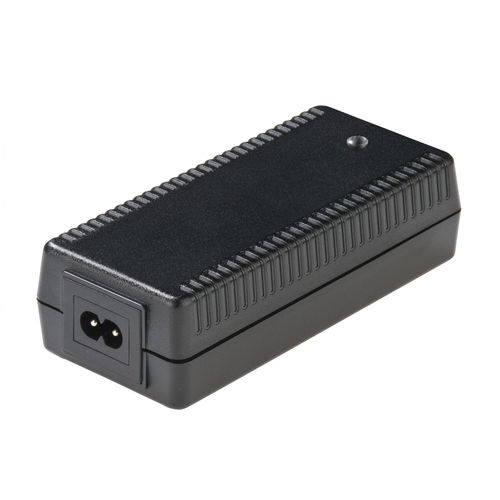

Adapter power supply DT50

tabletopAC/DCsingle-output

Product information "DT50 Medical" Characteristics DT50 Medical: universal input 100 to 240 V AC, constant voltage, current limited, green LED indicator, leakage current ≤ 10 μA, continuously short circuit proof, 2 x MOPP. •5V 5000mA up to 24V, 2200mA •Current: 5000 mA •Means of Protection: Input Output 2xMOPP, Input - Ground 1xMOPP •Output voltage tolerance: +2% / -2% •Frequency: 50 / 60 Hz •AC Input: 2 pole, IEC60320-C8 socket •Humidity: 5% to 95% •Working temperature: 0°C - 40°C •Storage temperature : -40°C - 70°C •MTBF: 200.000h acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic ) h •Standard: IEC60601-1 •DC output: Universal output plug system •Input tolerance: ±10% •Input voltage: 100-240 V •Protection Class: II •Spec.0 cover sheet FW-Type: FW7405M/05 •color: black
