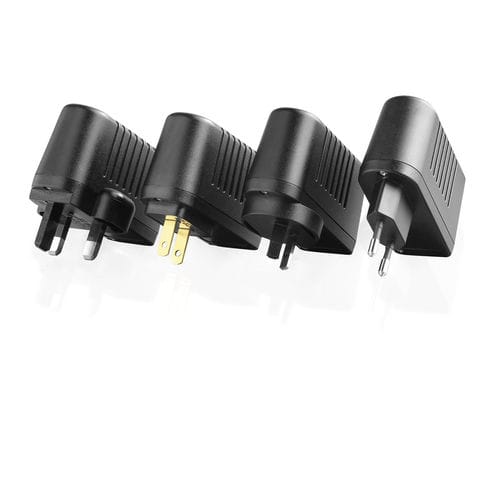

Plug-in power supply PP8 Medical

AC/DCsingle-outputfor medical applications

Product information "PP8" Characteristics PP8: Universal input 100 to 240 V AC, constant voltage, current limited, low leakage current ≤ 10 μA, low standby power ≤ 0.3 Watts, continuously short circuit proof Additional information •Output voltage: 5 •Family : PP8 •Current: 1300 •Output voltage tolerance: without consideration of the output lead •AC Input: EURO, UK, US/JP •Frequency: 50 / 60 Hz •Humidity: 5% to 95% •Working temperature: 0°C - 40°C •Storage temperature : -40°C - 70°C •Standard: IEC60950-1, IEC60065, IEC60335 •MTBF: 200.000h acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic ) h •DC output: Universal output plug system •Input tolerance: ±10% •Input voltage: 100-240 V •Spec.0 cover sheet FW-Type: FW7333S •Protection Class: II •color: black •Country version: EURO
