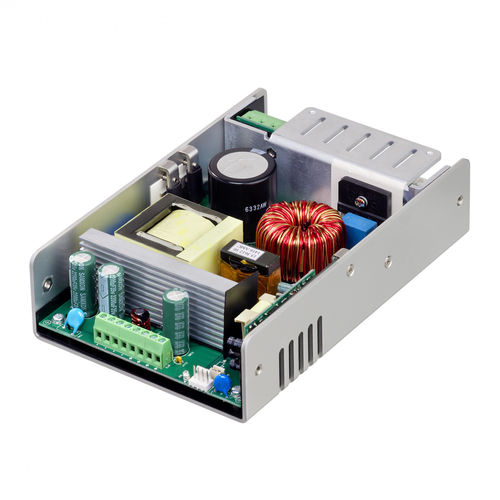

Open frame power supply OF450

AC/DCsingle-outputfor medical applications

Additional information•Output voltage: 24 V •Protection Class: I •Current: 18750 mA •Spec.0 cover sheet FW-Type: OF450-24 •Input voltage: 100-240 V •MTBF: 200.000h acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic ) h •Input tolerance: +10% / -10% •Storage temperature : -40°C - 70°C •Input current: 5500 mA •Working temperature: 0°C - 70°C •Humidity: 5% to 95% •Frequency: 50 / 60 Hz •AC Input: Screw Terminal •DC output: Screw Terminal •Family : OF450 •Output voltage tolerance: +2% / -2% •Means of Protection: Input Output 2xMOPP, Input - Ground 1xMOPP •Output voltage 2: 5 V •current 2: 100 mA •Standard: IEC60601-1, IEC62368-1
