Wire-wound resistor GXAD, GXMD x70 series

short-circuit proofhousedflat

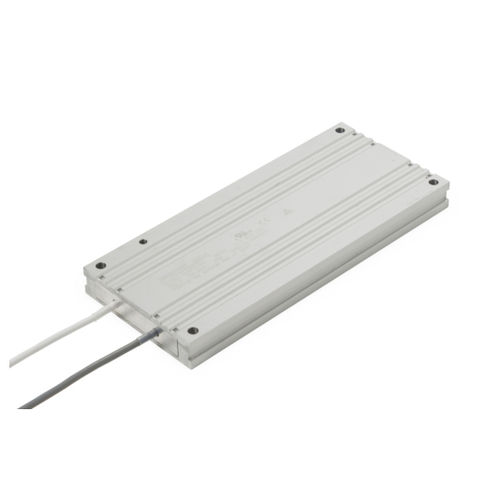

The T300 line of flat resistors is available in two types. The type series GXAD has a voltage of 848VDC, while the type GXMD has a voltage of 1,100VDC. Both feature IP40 protection and are short-circuit proof and self-extinguishing. The units are fitted with a blank aluminum enclosure, with a PT design and two PTFE-wires, AWG 14/19 (1,9mm²) and are 0,5m long. Higher continuous dissipation can be achieved by directing mounting the units onto an appropriate heat sink or cooling surface.
