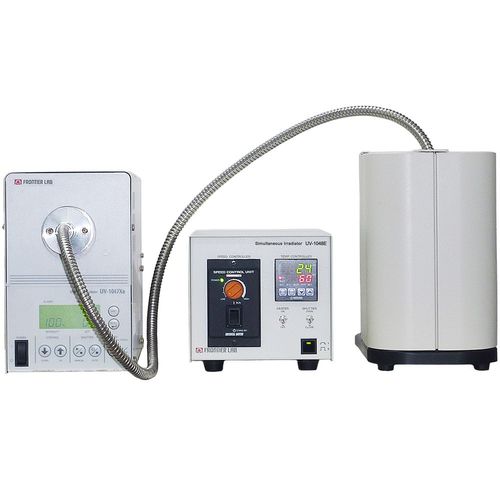

UV light source UV-1048E

benchtop

Simultaneous UV irradiation on up to 18 samples for efficient degradation test of polymeric materials Multi-Sample UV Irradiator (UV-1048E) is an option for Micro UV Irradiator (UV-1047Xe). This system can simultaneously irradiate a maximum of 18 polymer samples in the irradiation chamber for increased efficiency in accelerated deterioration tests of polymer samples using UV/Py-GC/MS system. The sample cup holder is rotated under the irradiation of UV light for uniformed irradiation. The temperature of polymer samples are controllable from 40 to 80 ºC. 1. Simultaneous irradiation of multiple samples Up to 18 samples can be simultaneously irradiated by UV light. 2. Small size and easy handling This bench-top size system offers simple and easy handling. 3. EGA or flash pyrolysis of irradiated samples Using UV/Py-GC/MS system, the irradiated polymer samples can be analyzed by EGA (Evolved Gas Analysis) or Py-GC/MS analysis. Maximum number of samples: 18 Heater temperature range: 40-80 ºC Size (multi-sample irradiation chamber): 150 (W) x 230 (D) x 245 (H) mm, 5.2 kg Size (temperature controller): 190 (W) x 280 (D) x 145 (H) mm, 5.2 kg Required power supply: 100 VAC (maximum 130 W)
