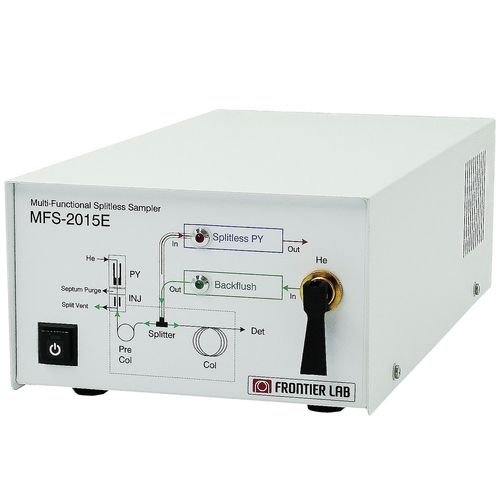

This device allows "new splitless pyrolysis", "backflush", and improved separation
The splitless pyrolysis greatly improves the detection sensitivity of pyrolyzates. The backflush shortens analysis time and reduces system contamination. This is a peripheral accessory exclusively used with the Multi-Shot Pyrolyzer (EGA/PY-3030D) (patented in Japan).
1. New Splitless Pyrolysis: High-sensitivity detection of trace pyrolyzates and solvent venting
2. Backflush: Shortens analysis time by blocking high-boiling compounds from flowing into separation column
3. Peak separation improvement: Improved peak separation by selecting an appropriate pre-column
Required pyrolyzer
Multi-Shot Pyrolyzer (EGA/PY-3030D)
Analysis method
Flash pyrolysis (Single-shot analysis) only
Supported columns
Deactivated metal column (Ultra ALLOY®) and FS capillary column, i.d. 0.25 and 0.32 mm
Accessories which can be used with the MFS
Auto-Shot Sampler (AS-1020E)
MicroJet Cryo-Trap (MJT-1030Ex, MJT-1035E, MJT-2030E)
Power requirement
100 - 240 VAC, 40 VA
