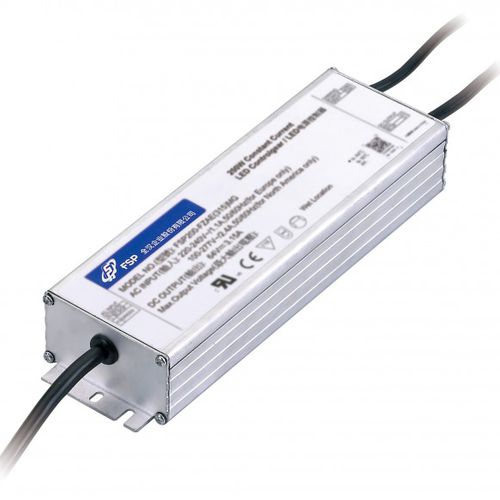

Closed circuit LED driver DG 80-200W
PWMhigh-efficiencypower factor correction

Closed circuit LED driver - DG 80-200W - FSP Technology Inc. - PWM / high-efficiency / power factor correction
Closed circuit LED driver - DG 80-200W - FSP Technology Inc. - PWM / high-efficiency / power factor correction
Add to favorites
Compare this product

Characteristics

Construction
closed circuit
Other characteristics
PWM, high-efficiency, power factor correction, programmable, dimmable, high-power
Electrical power

Max.: 200 W

Min.: 80 W

Input voltage

Max.: 305 V

Min.: 108 V

Primary current

Max.: 2.8 A

Min.: 0.7 A

Description

Feature •IP67 Design For LED Outdoor & Industrial Application •Wide Input Range for Worldwide use (up to 305Vac) •With 12V/100mA Auxiliary Output •Programming Function: AMC/CLO/NTC-Configuration/Auto-dimming/AST/EOL •High Surge Protection: 6kV/6kV(IEC61000-4-5) •Multiple dimming function ( PWM signal or resistance)/ DALI) •Built-in PFC Function: up to PF 0.99 •Dim-to-Off with Standby Power<0.5w •High Reliability & Long Life up to 100,000hrs •Type HL LED Driver for use in Class I Division 2 Hazardous Location Luminaires •All-Round Protections: Short Circuit/ Over Voltage/ Over Temperature •Safety: Meet IEC61347-2-13, UL8750 & EMI EN55015 Introduction For LED Outdoor & Industrial Application; Suitable to Dry, Damp,Wet Location
