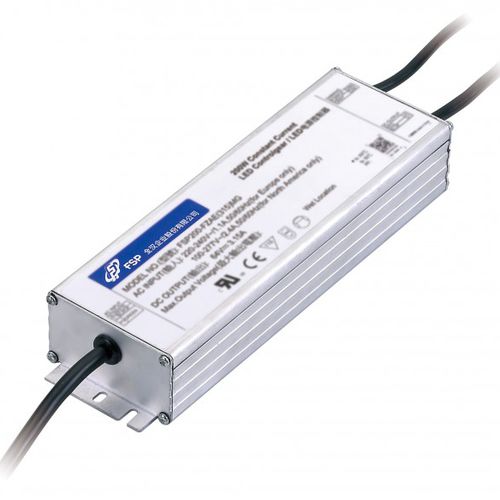

Enclosed LED driver SAE1 120/200Wconstant-currentPWMconstant voltage
Add to favorites
Compare this product
Characteristics
- Construction
- enclosed
- Other characteristics
- constant-current, PWM, constant voltage, power factor correction, dimmable, high-power
- Electrical power
Max.: 200 W
200 W
Min.: 60 W
- Input voltage
Max.: 305 V
Min.: 90 V
- Primary current
Max.: 8,300 mA
Min.: 4,150 mA
Description
Feature
•For LED Outdoor & Industrial Application
•Wide Input Range for Worldwide use (up to 305Vac)
•Built-in PFC Function: up to PF 0.99
•IP67 Design for Outdoor Installation
•Suitable to Dry, Damp, Wet Location
•High Surge Protection: 4kV/6kV(IEC61000-4-5)
•1-10V and PWM Dimming Function
•High Reliability & Long Life 50,000hrs
•Constant Current Design/ Low Ripple Current
•Type HL LED Driver for use in Class I Division 2 Hazardous Location Luminaires
•All-Round Protections: Short Circuit/ Over Voltage/ Over Temperature Protection
•Safety: Meet IEC61347-2-13, UL8750 & EMI EN55015
Introduction
For LED Outdoor & Industrial Application; Suitable to Dry, Damp,Wet Location
