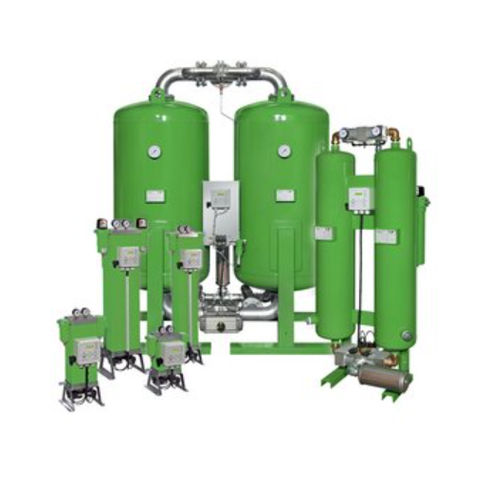

Heatless desiccant compressed air dryer DPS
high-capacityhigh-performancecompact

Heatless desiccant compressed air dryer - DPS - FST - high-capacity / high-performance / compact

Add to favorites

Compare this product

Characteristics

Technology

heatless desiccant

Other characteristics

compact, high-quality, high-performance, large, high-capacity, medium-size

Capacity

Max.: 6,890 m³/h
(243,318.05 ft³/h)

Min.: 8 m³/h
(282.52 ft³/h)

Working pressure

Max.: 16 bar
(232.06 psi)

Min.: 11 bar
(159.54 psi)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 2 °C
(35.6 °F)

Dew point

Max.: -25 °C
(-13 °F)

Min.: -70 °C
(-94 °F)

Description

Our highly efficient adsorption dryers of the DPS series optionally dry compressed air to a pressure dewpoint between -20 and -70°C. Thereby they generate highly undersaturated compressed air. Our high-performance compressed air dryers thus meet the highest requirements for the degree of dryness, especially in frost-prone areas or for compressed air applications with process air. Our customers from the food, electronics, pharmaceutical and chemical industries appreciate the performance of these high-quality compressed air dryers. By the way: A dewpoint control preparation is included with the DPS.
