Refrigerated compressed air dryer DFLO-ES
high-performancewater-cooledair-cooled

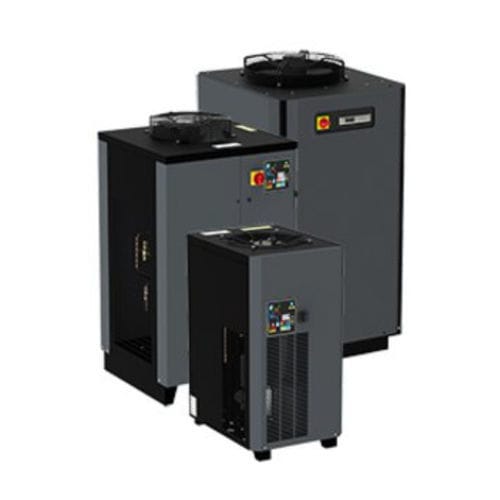

Refrigerated compressed air dryer - DFLO-ES - FST - high-performance / water-cooled / air-cooled

Add to favorites

Compare this product

Characteristics

Technology

refrigerated

Other characteristics

high-quality, air-cooled, high-performance, water-cooled

Capacity

Min.: 54 m³/h
(1,906.99 ft³/h)

Max.: 6,000 m³/h
(211,888 ft³/h)

Working pressure

Min.: 2 bar
(29.01 psi)

Max.: 16 bar
(232.06 psi)

Motor power

Min.: 0.2 kW
(0.27 hp)

Max.: 16 kW
(21.75 hp)

Operating temperature

Min.: 2 °C
(35.6 °F)

Max.: 60 °C
(140 °F)

Ambient temperature

Min.: 2 °C
(35.6 °F)

Max.: 46 °C
(114.8 °F)

Weight

Min.: 33 kg
(72.8 lb)

Max.: 720 kg
(1,587.3 lb)

Dew point

Max.: 3 °C
(37.4 °F)

Description

With its enormous efficiency, the DFLO-ES (Energy Saving) is one of the most economical compressed air réfrigération dryers on the international market. Dynamic savings potentials of up to 70 % can be achieved, thanks to its adaptation to dry fluctuating compressed air flows. By the way: Further cooling takes place in the patented and highly effective refrigerant/air/glycol heat exchanger.
