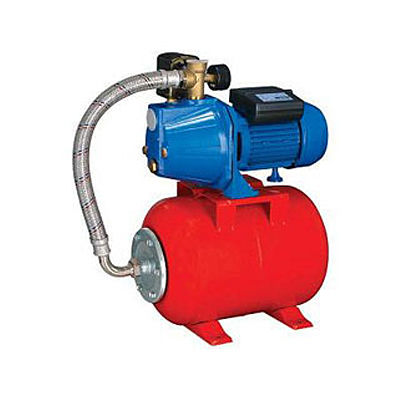

AUTOJET Series Automatic Booster Systems
IEC 60034-1 - IEC 335-1
- IEC 34-1 - ISO 2548
Introduction
Automatic high pressure groups coupled with selfpriming jet pumps.
They are very silent and reliable and from a water system, to supply water from wells and in domestic high pressure groups
Features
Single phase power supply with capacitor
permanently activated.
Insulation class: B
Protection: IP44
Speed of rotation:2850rpm
Continuous duty: S1
24 Litres Cylindrical Tank with membrane.
5 way brass: Connector(YJR5-G1"x50x80).
Pressure Switch:
Model SK-2(ON:1.38bar- OFF:2.76bar).
Pressure Gauge: 6 bar
Flexible hose:
YJFM-F1"xM1"x 33x52
