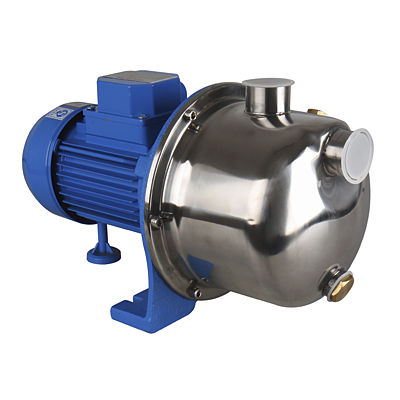

Impeller pump JETS series
waterself-primingindustrial

Impeller pump - JETS series - FUDING BROTHERS POWER COMPANY - water / self-priming / industrial
Impeller pump - JETS series - FUDING BROTHERS POWER COMPANY - water / self-priming / industrial
Add to favorites
Compare this product

Characteristics

Technology
impeller
Fluid
water
Priming
self-priming
Domain
industrial
Applications
work, lift, lifting, distribution, suction
Material
stainless steel, ceramic, brass
Other characteristics
mechanical
Flow

3.2 m³/h, 3.7 m³/h, 4.3 m³/h
(113.00693 ft³/h, 130.66427 ft³/h, 151.85307 ft³/h)

Power

0.37 kW, 0.55 kW, 0.75 kW
(0.5 hp, 0.75 hp, 1.02 hp)

Description

JETS Series Self-priming Waiter Pumps Suction lift up to 9m with foot valve. - Maximum operating pressure: 8 bar. - Maximum ambient temperature: +40℃ . - Liquid temperature up to +60℃. - Maximum altitude +1000m. Introduction Selfpriming Garden jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to mt. 8 depth and work perfectly even in soda-water. Suitable for water lifting and distribution in domestic fittings and little irrigations. Features Pump body: stainless steel. - Impeller: Brass or PPO or "General Electric". - Ejector union: PPO or "General Electric". - Motor shaft: AISI1045. - Mechanical seal: NBR/Graphite/Ceramic. - Internal thermal protector.
