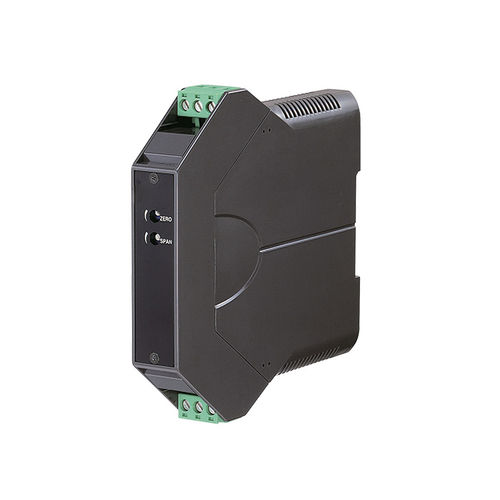

DIN RAIL ANALOG SIGNAL CONVERTER – TYPE B3
RELIABLE SIGNAL CONVERSION AND ISOLATION FOR INDUSTRIAL SYSTEMS

The Type B3 DIN rail analog signal converter is designed for analog signal processing in industrial environments. It converts field signals into a standard signal that can be used by automation equipment, while also providing isolation and amplification functions suited to process applications.

FEATURES OF THE DIN RAIL ANALOG SIGNAL CONVERTER – TYPE B3

• Universal inputs with isolated output
• Supports millivolt, voltage, resistance temperature detector, thermocouple and potentiometer signals
• 4 to 20 milliampere direct current analog output
• Wide 12 to 45 volt direct current power supply range
• DIN rail mounting
• 2-wire analog converter
• Isolation from input to output and power supply
• Operating temperature from -40 to +85 degrees Celsius
• Flame-retardant resin housing
• Compact 18 millimetre width

APPLICATIONS
This converter is suitable for converting, isolating and amplifying signals from industrial process sensors in order to simplify integration into automation systems.

ADVANTAGES

• High versatility for different analog input types
• Isolated output to reduce interference and prevent ground loops
• Wide power supply range for easier integration
• Slim design to save cabinet space
• Easy DIN rail installation
• Input and scale adjustment through internal switches with fine front adjustment
