Analog signal converter B3HU

universalisolatorDIN rail

DIN RAIL HART® CONVERTER FOR RELIABLE SIGNAL INTERFACING
OPTIMIZE CONVERSION, ISOLATION AND TRANSMISSION OF YOUR ANALOG SIGNALS

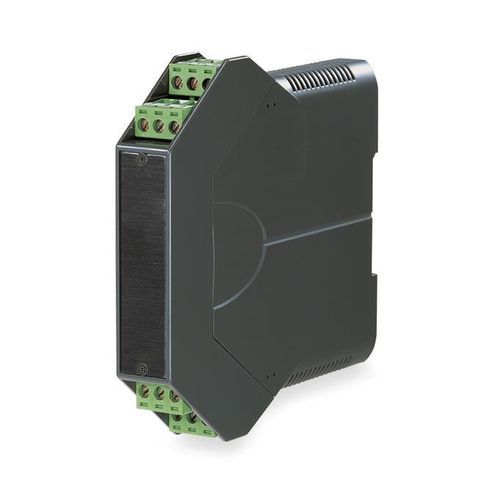

The B3HU HART® DIN rail analog signal converter provides the interface between field sensors and industrial automation systems. Compact and isolated, it enables reliable processing of process signals.

CHARACTERISTICS B3HU HART® DIN RAIL ANALOG SIGNAL CONVERTER

• Universal inputs: millivolts, resistance thermometer, thermocouple, potentiometer
• 4-20 mA DC output signal
• 12 to 45 V DC power supply
• DIN rail mounting
• Isolation between input, output and power supply
• Operating temperature from -40 to +85 °C
• Flame-retardant resin housing
• Weight: 80 g

APPLICATIONS
Designed to convert signals from industrial sensors to PLC, DCS or PC systems.

BENEFITS

• Reliable conversion of analog field signals
• HART® communication for advanced integration
• Compact format for DIN rail mounting
• Signal isolation to reduce ground loops
• Wide power supply range
• Available with ATEX intrinsic safety option
