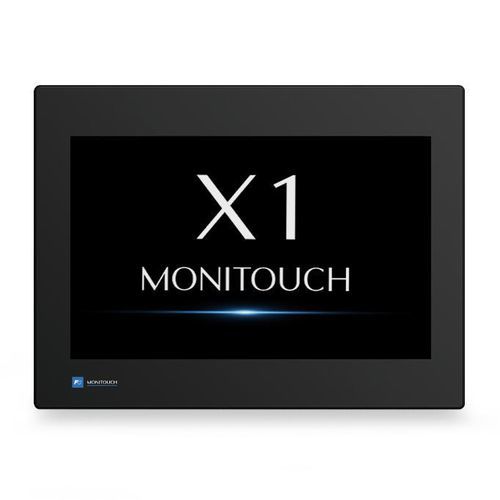

HMI with touch screen Monitouch X112

panel-mountRS-232WLAN

MONITOUCH X112 HMI – 12.1 INCHES: THE CONNECTED INDUSTRIAL INTERFACE
CONTROL YOUR EQUIPMENT WITH A POWERFUL, FLEXIBLE HMI READY FOR THE DIGITAL FACTORY

The Fuji Electric Monitouch X112 HMI is a 12.1-inch human-machine interface designed to simplify supervision, connectivity and industrial data use. It integrates with automation environments and IT systems to support the digital transformation of production sites.

MONITOUCH X112 HMI – 12.1 INCHES FEATURES

• 12.1-inch industrial HMI screen
• Reference: X112
• Power supply: 24 VDC ± 10%
• Maximum power consumption: 41 W or less
• Communication: 2 Ethernet ports + 1 serial port, with WLAN and Bluetooth option
• IT compatibility: OPC UA, MQTT, Microsoft Azure, Microsoft SQL Server
• Operating temperature: 0 °C to +45 °C
• Dimensions: 320 × 241 × 66.7 mm
• Weight: approximately 3.2 kg
• Panel mounting

APPLICATIONS

The Monitouch X112 HMI is suitable for industrial automation, production line supervision, pharmaceutical equipment and installations requiring reliable data sharing between machines, cloud platforms and host systems.

BENEFITS

• Broad connectivity between industrial automation and IT systems
• OPC UA gateway function for data collection and sharing
• Cloud compatibility via MQTT for production data monitoring
• Supports Windows applications, Word, Excel, PDF and Internet use
• User-friendly interface with excellent visibility
• Supports maintenance, equipment standardization and the transition to smart factories
