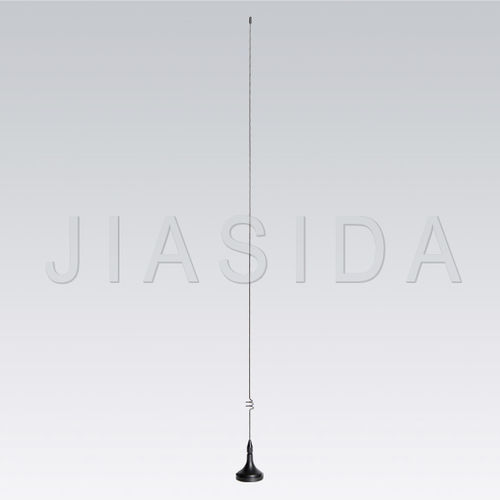

UHF antenna TC-10UVVHFomnidirectionalvehicle
Add to favorites
Compare this product
Characteristics
- Network
- UHF, VHF
- Type
- omnidirectional
- Applications
- vehicle
- Frequency
144 MHz, 435 MHz
- Gain
2.15 dB, 3.5 dB
Description
ELECTRICAL SPECIFICATIONS
Impedance---------------------------- 50Ohm
VSWR------------------------------ less than 1.5
Polarization--------------------------------- Vertical
Lighting Protection----------------------- Direct Ground
Maximum Power Input-watts--------- 50 W
MECHANICAL SPECIFICATIONS
Height----------------------------------------- 505±5 mm
Diameter of Bedrock--------------------- Ø33mm
Cable length/Type------------------------- 3m/RG-174
Cable Termination------------------------- BNC-male
Radiating Element Material------------ steel
