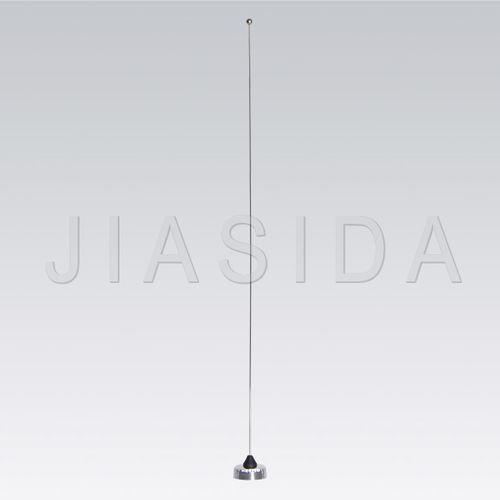

VHF antenna SD-TC152omnidirectionalfor vehicles
Add to favorites
Compare this product
Characteristics
- Network
- VHF
- Type
- omnidirectional
- Applications
- for vehicles
- Frequency
Min.: 150 MHz
Max.: 160 MHz
- Gain
2.5 dB
Description
ELECTRICAL SPECIFICATIONS
Band Width---------------------------------- 5MHz
Impedance----------------------------------- 50Ω
VSWR----------------------------------------- ＜1.5
Polarization---------------------------------- Vertical
Lighting Protection------------------------ Direct Ground
Maximum Power Input-watts---------- 150 W
MECHANICAL SPECIFICATIONS
Height------------------------------------------ 450mm
Termination----------------------------------- NMO
Diameter of Chassis----------------------- Ø33.5±0.2 mm
Radiating Element Material------------- Stainless Steel
