Entocentric camera objective HF-HA-1S

fixed-focusfor industrial useinspection

Overview

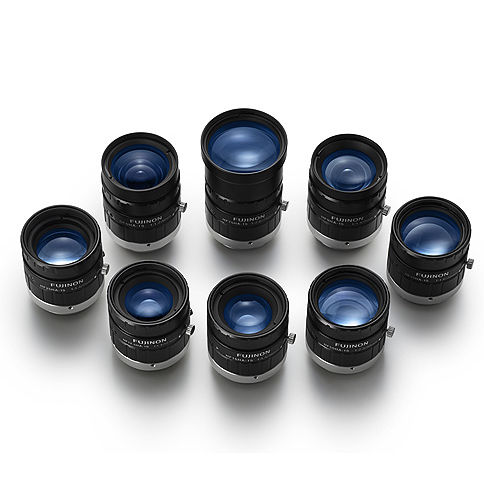

Fujinon HF-HA-1S series is a family of high-resolution machine vision lenses designed for 2/3-inch-type sensors with a target resolving capability up to 6.2μm pixel pitch. The DF6HA-1S model supports 1/2-inch-type sensors. The series succeeds the HF-HA-1B lineup while maintaining the same optical performance and mechanical dimensions.

Key features

• Resolution: supports sensors with up to 6.2μm pixel pitch (≈1.5 MP).
• Vibration- and shock-resistant mechanical design based on Fujifilm Anti Shock & Vibration Technology (patented); vibration test reference: JIS C 60068-2-6 conditions as indicated.
• High infrared transmission suitable for single-wavelength IR illumination in machine vision systems.
• Very short MOD on selected models (example: DF6HA-1S supports near 10 mm MOD from the front of the barrel).
• Compact, unified mechanical design: typical outer diameter φ29.5 mm (HF75HA-1S φ31.5 mm) and common user ergonomics across models.
• Wide lineup of 8 focal lengths (6, 9, 12.5, 16, 25, 35, 50, 75 mm) covering a broad range of industrial vision applications.
• Low F-number options on specific models (down to F1.2) for low-light conditions; manual focus and iris on all models.

Series compatibility table (model → compatible sensor size / focal length)
DF6HA-1S → 1/2-inch (std.) ●, 1/3-inch ● → 6 mm
HF9HA-1S → 2/3-inch (6.2μm) ● → 9 mm
HF12.5HA-1S → 2/3-inch (6.2μm) ● → 12.5 mm
HF16HA-1S → 2/3-inch (6.2μm) ● → 16 mm
HF25HA-1S → 2/3-inch (6.2μm) ● → 25 mm
HF35HA-1S → 2/3-inch (6.2μm) ● → 35 mm
HF50HA-1S → 2/3-inch (6.2μm) ● → 50 mm
HF75HA-1S → 2/3-inch (6.2μm) ● → 75 mm

Lineup — individual model highlights

• DF6HA-1S: Focal length 6 mm; Iris F1.2–F16; Angle of view 57.3°×43.8° (1/2-inch); Working distance ∞–100 mm (MOD very short); Manual focus and iris; Filter thread M27 x 0.5; Mount C-mount; Weight ~50 g; Standard sensor size 1/2-inch (4.5μm); TV distortion -1.84%; Dimension Φ29.5×36.7 mm.
• HF9HA-1S: Focal length 9 mm; Iris F1.4–F16; Angle of view 53.3°×40.5° (2/3-inch); Working distance ∞–100 mm; Manual focus and iris; Filter thread M27 x 0.5; Mount C-mount; Weight ~50 g; Standard sensor size 2/3-inch (6.2μm); TV distortion -2.00%; Dimension Φ29.5×35 mm.
• HF12.5HA-1S: Focal length 12.5 mm; Iris F1.4–F16; Angle of view 39.2°×29.4° (2/3-inch); Working distance ∞–100 mm; Manual focus and iris; Filter thread M25.5 x 0.5; Mount C-mount; Weight ~40 g; Standard sensor size 2/3-inch (6.2μm); TV distortion -1.95%; Dimension Φ29.5×29.5 mm.
• HF16HA-1S: Focal length 16 mm; Iris F1.4–F16; Angle of view 30.5°×22.9° (2/3-inch); Working distance ∞–100 mm; Manual focus and iris; Filter thread M25.5 x 0.5; Mount C-mount; Weight ~40 g; Standard sensor size 2/3-inch (6.2μm); TV distortion -0.87%; Dimension Φ29.5×29.5 mm.
• HF25HA-1S: Focal length 25 mm; Iris F1.4–F16; Angle of view 19.4°×14.6° (2/3-inch); Working distance ∞–150 mm; Manual focus and iris; Filter thread M25.5 x 0.5; Mount C-mount; Weight ~40 g; Standard sensor size 2/3-inch (6.2μm); TV distortion -0.19%; Dimension Φ29.5×29.5 mm.
• HF35HA-1S: Focal length 35 mm; Iris F1.6–F22; Angle of view 14.3°×10.8° (2/3-inch); Working distance ∞–250 mm; Manual focus and iris; Filter thread M25.5 x 0.5; Mount C-mount; Weight ~40 g; Standard sensor size 2/3-inch (6.2μm); TV distortion 0.10%; Dimension Φ29.5×29.5 mm.
• HF50HA-1S: Focal length 50 mm; Iris F2.3–F22; Angle of view 10.1°×7.6° (2/3-inch); Working distance ∞–500 mm; Manual focus and iris; Filter thread M25.5 x 0.5; Mount C-mount; Weight ~45 g; Standard sensor size 2/3-inch (6.2μm); TV distortion 0.06%; Dimension Φ29.5×29.5 mm.
• HF75HA-1S: Focal length 75 mm; Iris F2.8–F22; Angle of view 6.7°×5.0° (2/3-inch); Working distance ∞–1,100 mm; Manual focus and iris; Filter thread M30.5 x 0.5; Mount C-mount; Weight ~50 g; Standard sensor size 2/3-inch (6.2μm); TV distortion 0.36%; Dimension Φ31.5×48 mm.

Notes
The HF-HA-1S series is the successor to the HF-HA-1B series and maintains the same optical performance and mechanical dimensions. "Standard" sensor size indicates the ideal sensor to achieve target resolution; "max" indicates adaptable sensor sizes depending on model and application — check edge illumination and resolution for your setup.

Technical specifications

• Series name: HF-HA-1S
• Brand: Fujinon (FUJIFILM)
• Resolution target: up to 6.2μm pixel pitch (≈1.5 MP)
• Primary compatible sensor: 2/3-inch (std.) for most models; DF6HA-1S supports 1/2-inch
• Mount: C-mount (all listed models)
• Iris ranges: model-dependent (examples: DF6HA-1S F1.2–F16; HF9HA-1S F1.4–F16; HF75HA-1S F2.8–F22)
• Filter threads: M27 x 0.5, M25.5 x 0.5 or M30.5 x 0.5 depending on model
• Dimensions: typically Φ29.5×(length mm); HF75HA-1S Φ31.5×48 mm
• Weight: ~40–50 g depending on model
• Operation: Manual focus and manual iris
• TV distortion: model-dependent (values listed per model)
• Design: Anti Shock & Vibration Technology (vibration and shock resistant)
• Lineup: 8 focal lengths — 6 / 9 / 12.5 / 16 / 25 / 35 / 50 / 75 mm
