Fixed-focus camera objective CF-HA

inspectionautomated optical inspectionmachine vision

Overview

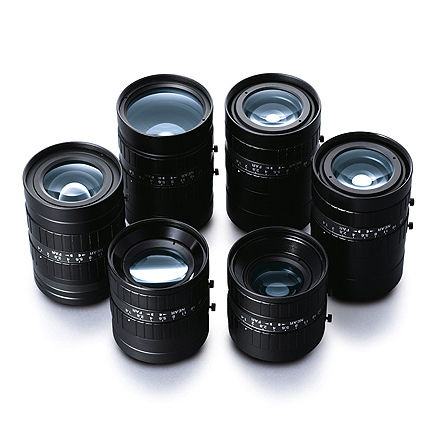

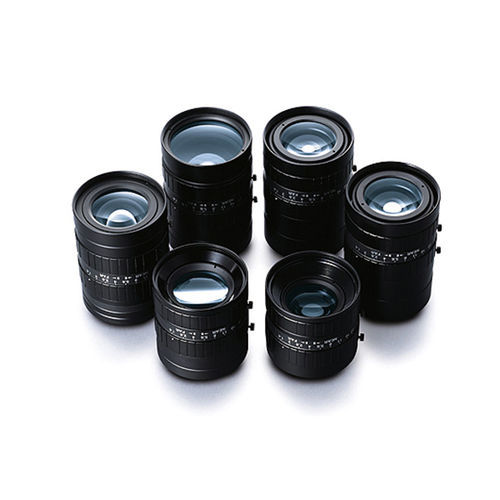

FUJINON CF-HA Series machine vision lenses are compatible with large 1-inch image sensors and support up to 1.5 megapixel resolution (7.4 μm pixel pitch). The line includes fixed focal lengths 12.5, 16, 25, 35, 50 and 75 mm with C-mount and M49 x 0.75 filter thread.

Main features

• Low TV distortion: minimized distortion for high-accuracy applications such as dimensional measurement and automated inspection.
• High close-up performance: rear-focusing method on CF12.5HA-1 and CF16HA-1 improves imaging at short working distances.
• Low F-number: available down to F1.4 on most models for improved low-light capture; CF50HA-1 and CF75HA-1 start at F1.8.
• Good peripheral illumination: maintains sufficient light at image edges to support stable inspection accuracy.

CF-HA series specification sheet (compatible format sizes matrix)
Model | 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | Focal length (mm)
CF12.5HA-1 | － | － | ● | ● | ● | ● | ● | ● | 12.5
CF16HA-1 | － | － | ● | ● | ● | ● | ● | ● | 16
CF25HA-1 | － | － | ● | ● | ● | ● | ● | ● | 25
CF35HA-1 | － | － | ● | ● | ● | ● | ● | ● | 35
CF50HA-1 | － | － | ● | ● | ● | ● | ● | ● | 50
CF75HA-1 | － | － | ● | ● | ● | ● | ● | ● | 75
● Compatible sensor size (std.): ideal size to maximize the target resolution.

Lineup — per-model key specifications
CF12.5HA-1
Focal length [mm] | 12.5
Iris range (F no) | F1.4-F22
Angle of view | 53.1° x 41.2° (1-inch)
Working distance (mm) | ∞–100
Focus operation | Manual (rear focusing)
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 290
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.86
Dimension [mm] | Φ51 × 68.5

CF16HA-1
Focal length [mm] | 16
Iris range (F no) | F1.4-F22
Angle of view | 42.6° x 32.8° (1-inch)
Working distance (mm) | ∞–100
Focus operation | Manual (rear focusing)
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 280
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.79
Dimension [mm] | Φ51 × 70.5

CF25HA-1
Focal length [mm] | 25
Iris range (F no) | F1.4-F22
Angle of view | 29.9° x 22.7° (1-inch)
Working distance (mm) | ∞–100
Focus operation | Manual
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 310
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.36
Dimension [mm] | Φ51 × 75.5

CF35HA-1
Focal length [mm] | 35
Iris range (F no) | F1.4-F22
Angle of view | 20.3° x 15.3° (1-inch)
Working distance (mm) | ∞–200
Focus operation | Manual
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 180
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.18
Dimension [mm] | Φ51 × 48.5

CF50HA-1
Focal length [mm] | 50
Iris range (F no) | F1.8-F22
Angle of view | 14.1° x 10.6° (1-inch)
Working distance (mm) | ∞–400
Focus operation | Manual
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 235
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.20
Dimension [mm] | Φ51 × 55.5

CF75HA-1
Focal length [mm] | 75
Iris range (F no) | F1.8-F22
Angle of view | 9.8° x 7.3° (1-inch)
Working distance (mm) | ∞–900
Focus operation | Manual
Iris operation | Manual
Filter thread [mm] | M49 x 0.75
Mount | C-mount
Weight (approx.) [g] | 300
Sensor size (std.) | 1-inch (9.1 μm)
TV distortion [%] | 0.01
Dimension [mm] | Φ51 × 76

Technical specifications

• Series: CF-HA Series
• Brand: FUJINON
• Compatible sensor (standard): 1-inch (9.1 μm) — optimized for up to 1.5 MP with 7.4 μm pixel pitch
• F-number: down to F1.4 on most models; CF50HA-1 and CF75HA-1 F1.8 minimum
• Mount: C-mount
• Filter thread: M49 x 0.75
• Focus: Manual (rear focusing on CF12.5HA-1 and CF16HA-1)
• Weight range: approx. 180 g to 310 g depending on model
• Typical TV distortion range: 0.01% to 0.86% depending on focal length
