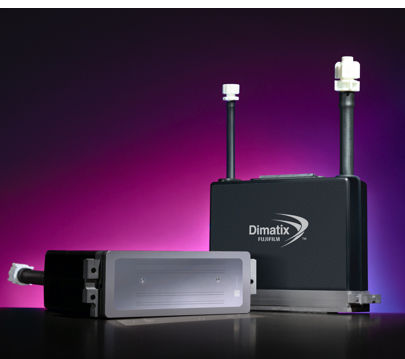

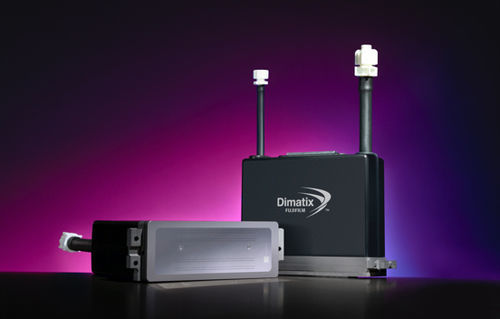

Inkjet printer head StarFire® SG1024/LC

for high-speed packaging printer

Overview
The STARFIRE® SG1024 C-Series LC is a single-pass printhead engineered for ceramic decoration and industrial single-pass or high-speed scanning systems. Designed for integration into production lines, it supports oil- and solvent-based ceramic inks and includes integrated temperature control and sensor for stable operation.

Key features

• 1024 individually addressable jets per module arranged in 8 rows
• Native resolution up to 400 dpi
• VersaDrop: binary and greyscale multi-drop control from a single head
• Drop sizes from 6 to 200 pL depending on variant (XSC/SC/MC/LC/MCHF/LCHF)
• REDIJET® ink recirculation with optional high-flow recirculation for glazes and demanding fluids
• Metal nozzle plate, replaceable for abrasion resistance
• Integrated temperature control and sensor; operating temperature up to 50°C (122°F)
• OEM-accessible non-volatile memory (64-byte rewritable)

Product data

• Model / series: STARFIRE® SG1024 C-Series (LC variant)
• Manufacturer: FUJIFILM Dimatix
• Addressable jets/module: 1024
• Print width: 64.96 mm (2.55 in)
• Native resolution: 400 dpi
• Native / max drop size (pL): 6–200 (variant dependent)
• VersaDrop max productivity (ng·kHz): up to 1500 depending on variant
• Firing frequency (kHz): variant dependent (examples: 50/18, 30/12, 20/8)
• Nozzle plate: metal
• Compatible fluids: oil- and solvent-based ceramic inks
• Viscosity range: 8–20 cP (10–14 cP recommended for highest productivity)
• Temperature control: included; integrated sensor

Notes
Specifications may vary with application conditions and system integration. Product illustrations are schematic and not to scale. For integration support and recommended fluid profiles contact FUJIFILM Dimatix technical resources.
