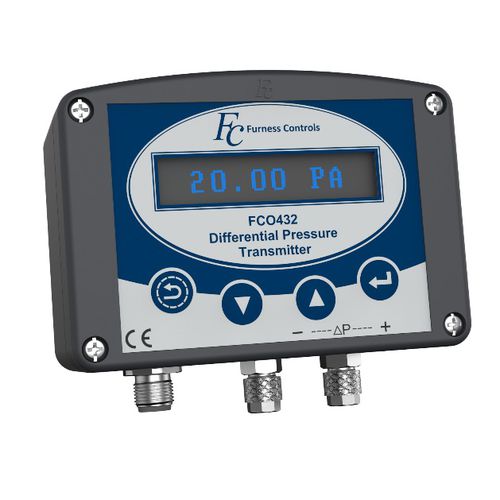

Differential pressure transmitter FCO432
capacitivewall-mountpanel-mount

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
capacitive
Mounting
wall-mount, panel-mount
Other characteristics
precision, CE, for pharmaceutical applications, OEM, temperature-compensated, for clean rooms, low pressure, with LCD display, with digital display, for medical applications, programmable, custom, with selectable measurement range, with LED display, IP67
Process temperature

Max.: 60 °C (140 °F)

Min.: -10 °C (14 °F)

Pressure range

Max.: 1,000,000 Pa (145.04 psi)

Min.: 0.05 Pa (0 psi)

Description

Key Features Accuracy < 0.25% of reading Ultra low pressure measurement High-clarity LCD, or high brightness illuminated OLED display panel USB, RS232 or RS485 output Multiple output functions: linear, square-root, custom linearisation The versatile FCO432 is a cost-effective industrial differential pressure transmitter suitable for a variety of clean environment applications. There are 11 models available, each with differing pressure ranges, as well as a selection of configurable options to create the ideal instrument. Ultra Low Pressure Measurement The FCO432 provides very high precision at the lowest pressures. The 11 models start with the ±50Pa measurement range and graduate through to -1bar to +10bar, each with an accuracy <0.25% of reading. The pressure cell is based on the unique Furness Controls capacitive sensor of proven reliability. A microcontroller is used to control all functions of stability, such as temperature correction and display damping. Output Options Available with standard 2-wire 4-20mA and 4-wire isolated 4-20mA current output, as well as voltage options, the FCO432 can fit into a variety of industrial set-ups. Additional flexibility is provided by USB, RS232 and RS485 communication options. LCD or OLED Display Options The differential pressure transmitter comes with two display options. There is the choice between a large character, low power LCD display, which is fully compatible with 4-20mA options, or a high brightness, illuminated OLED display (this requires separate 24V power supply), enabling the device to be used for a multitude of applications. Alternatively, the device can be used blind, without a display.
