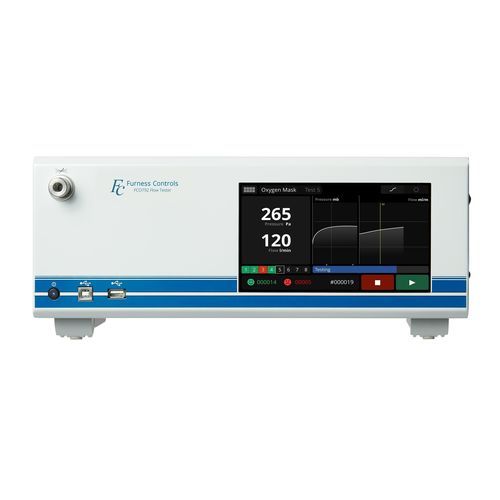

Mass flow meter FCO792

for airRS485USB

Automatic pressure & temperature compensation 300 configurable products and 300 tests as standard Automatic pressure regulation variant available Partial blockage identification and cross sectional area testing The FCO792 & FCO782 offer a no-compromise approach to all production line flow measurement requirements. In addition to standard flow tests these instruments can also be used for leak and blockage tests, detecting partial blockages in both finished products and components. Possible applications include exhaust systems, breathing apparatus, facemasks, laser drillings, medical devices, gas burners, boilers, castings, and fuel pumps to name but a few. Air and gas flows from 0.01 ml/min to 10,000 l/min Using Furness Controls' laminar flow technology, the FCO782 & FCO792's versatility is well proven in many production environments. To cover the multitude of products tested throughout industry, these devices have been designed to offer maximum flow ranges from 20.00 ml/min to 10,000 l/min (10 flow ranges available). They can also be supplied to "dual range", offering the user the facility to read high and low flow measurements on one instrument without the loss accuracy or display resolution. Automatic pressure & temperature compensation The FCO792 & FCO782 feature pressure and temperature compensation giving automatic correction to the leak reading regardless of the actual test pressure and temperature. The leak reading displayed is the equivalent leak that would occur at the pressure and temperature entered in the test data. This negates the need to constantly monitor the set test pressure.
