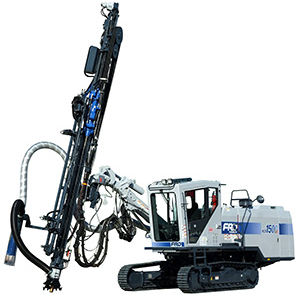

Multifunction drilling rig HCR1500-EDⅡ
crawlertophammerhydraulic

multifunction drilling rig
multifunction drilling rig
Add to favorites
Compare this product


Characteristics

Applications
multifunction
Mobility
crawler
Drilling unit
tophammer
Other characteristics
hydraulic, construction
Drilling diameter

Max.: 127 mm
(5 in)

Min.: 89 mm
(4 in)

Drilling depth

3.66 m
(12'00" )

Description

This is the integrated hydraulic crawler drill HCR series that proposes a new standard by including a new hydraulic drifter. FRD has developed Dual Damper System first in the industry. For maximum energy transfer, Active DDS minimizes return of shock waves by keeping the bit firmly against the rock at all times during drilling. Active DDS minimizes percussion energy loss and, by optimizing the overall feed force required, produces straighter holes. Operating Weight17,170 kg Overall Length10,010 mm Overall Width3,720 mm Overall Height3,325 mm Drifter ModelHD715 Emission CertifiedStage ⅢA Free Air Delivery13.5 ㎥/min Boom TypeExtension Rod Size51R Thread TypeT51
