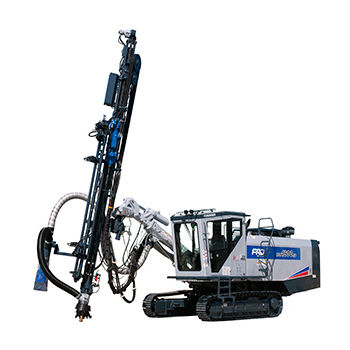

Multifunction drilling rig HCR1600-EDcrawlertophammerhydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Mobility
- crawler
- Drilling unit
- tophammer
- Other characteristics
- hydraulic, construction
- Drilling diameter
Max.: 127 mm (5 in)
Min.: 89 mm (4 in)
- Drilling depth
3.66 m (12'00")
Description
Top Hammer Drill
This is the integrated hydraulic crawler drill HCR series that proposes a new standard by including a new hydraulic drifter.
FRD has developed Dual Damper System first in the industry.
For maximum energy transfer, Active DDS minimizes return of shock waves by keeping the bit firmly against the rock at all times during drilling.
Active DDS minimizes percussion energy loss and, by optimizing the overall feed force required, produces straighter holes.
HCR1600-ED
Operating Weight17,520 kg
Overall Length10,295 mm
Overall Width3,740 mm
Overall Height3,874 mm
Drifter ModelHD828
Emission CertifiedStage ⅢB
Free Air Delivery13.5 ㎥/min
Boom TypeExtension
Bit Diameter89 - 127 mm
Rod Size51R
Thread TypeT51
Rod Length3,660 mm
Catalogs
No catalogs are available for this product.
See all of Furukawa Rock Drill‘s catalogs
