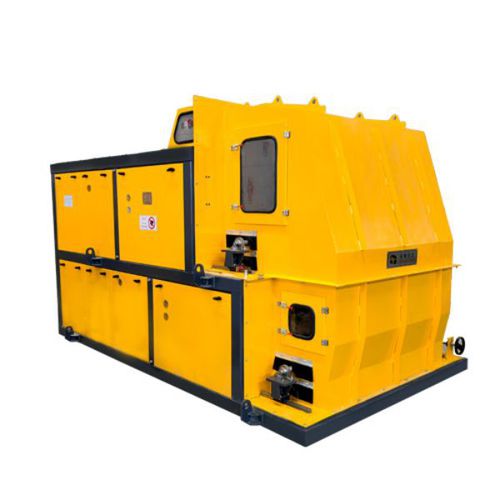

Metal separator DP-P series

magneticeddy currentprocess

EJET proudly introduces the Dual-Pass Eddy Current Separator (DPECS). Expertly designed and manufactured, this innovative system optimizes the separation of non-ferrous metals, taking efficiency to a new level. Sepcially used in fine aluminum (min 1-2mm) recovery. Ultra-high Frequency Effectiveness DPECS delivers supreme frequency sorting effectiveness, achieved by lining up two exceptional EJET concentric/eccentric Eddy Current Separator units. It exhibits a high intensity magnetic field of more than 4300Gs on the belt surface and a formidable rotation speed on the magnetic roller, up to 4000 rpm. The robustly constructed, enclosed, stacked design ensures stable operation, promising that all materials will pass through both machines unimpeded, hence delivering outstanding sorting efficiency within a minimal space requirement. This is particularly helpful in existing operational sites, effortlessly addressing any potential issues resulting from space constraints. Nylon Brush Rollers The DPECS is especially beneficial in the field of wet process incinerator bottom ash recovery. In an effort to enhance the sorting efficiency, we’ve fortified each laver of the Eddy Current Separators with robust densely arranged, acid and alkali resistant and highly durable nylon brush rollers, installed directly under the belts. These are specifically purposed for efficiently sweeping away the moisture-laden materials that stick on the belt surface. Our cleaning brush roller offers two distinct modes: automatic adjustability and no adiustment setting. Automatic adjustability feature that can be altered vertically (up and down).
