wall-mounted junction box / NEMA / IP65 / polycarbonate
IAC200 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

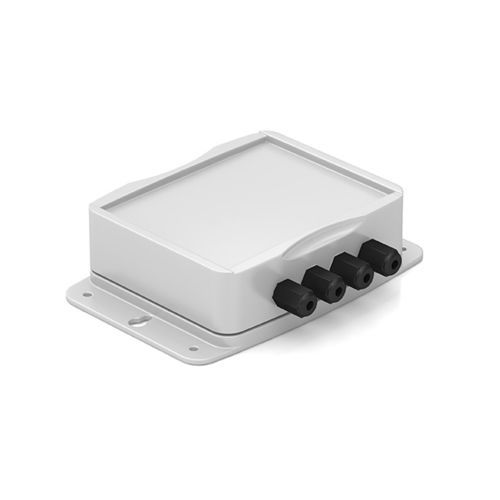

wall-mounted junction box / NEMA / IP65 / polycarbonate wall-mounted junction box / NEMA / IP65 / polycarbonate - IAC200 series
{{requestButtons}}

Characteristics

  • Mounting:

    wall-mounted

  • Protection level:

    NEMA, IP65

  • Material:

    polycarbonate

  • Applications:

    for load cells

Description

FUTEK's IAC200 2–4 Channel Summing Junction Boxis FUTEK’s solution for utilizing one display with multiple sensor where the output resultant or summing is required. The IAC200 features dip switch selectable channels (2 to 4), a UV Stable 94V-2 Polycarbonate Enclosure, and weighs only 14.7 oz. It is also available with built-in amplifier for VDC or 4-20 mA output.

Model Features
•Excitation – mV/V Version: Refer to sensor infosheet for max excitation, system not to exceed 24 VDC – VDC, mA Version: 14-26VDC
•Dip Switch Selectable Channels (2-4)
•Individual Span Adjustment For All 4 Channels 350 Ohm bridge - 13% 700 Ohm bridge - 24% 1000 Ohm bridge - 31%
•Easy Access Screw Terminal Blocks
•Cable Strain Relief To Support Cables From Ø 0.08 in [Ø 2.0 mm] to Ø 0.25 in [Ø 6.35 mm]
•Dual Mounting Holes
•IP65/NEMA 4X Rated Housing UV Stable 94V-2 Polycarbonate Material
