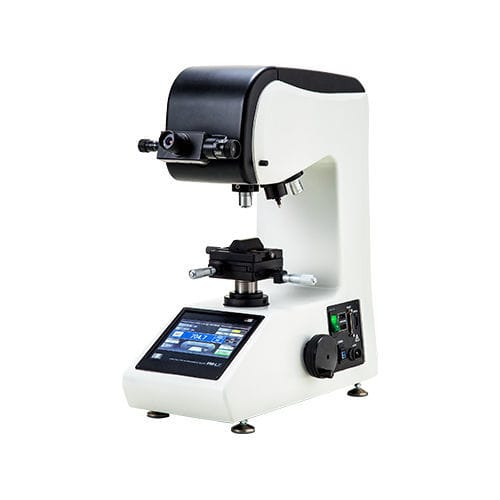

Load cell hardness tester FM-LX

Brinellmicro VickersKnoop/Vickers

Equipped with a built-in camera mechanism Independently developed automatic indentation with high performance dedicated software & PC measurement.By removing the measuring microscope, the appearance is refreshed.(R type with automatic indentation reading function) Test force by Load-cell In addition to the conventional weight method, a lineup of models that adopts the loading by Load-cell and the multistepload switching have made it possible to achieve the heavy accuracy.Multi-load type 50gf~10kgf various with a wide load range corresponds to various tests. (FM-LX series) Tilted turret By adopting a tilted turret, the turret rotation reduces the risk of contact bewteen the sample and the indenter/objective lens. Infinity lens In addition to the standard 2 lenses (×10 and ×50), up to 5 can be installed at the same time. (option) A wider range of measurement and observation is possible from low magnification to high magnification. Dual indenters Standard 1 | Vickers indenter (HV) Option 1 | Vickers (HV) / Knoop (HK) / Brinell (HB) Total 2 pieces of different indenter can be installed. Capacitive touch panel The main display screen can be switched by swiping. Capacitive touch panel realizes light touch operation. Measured data can be transferred directly by connecting to a PC from the output port of the main unit. Eliminates recording mistakes by operators.
