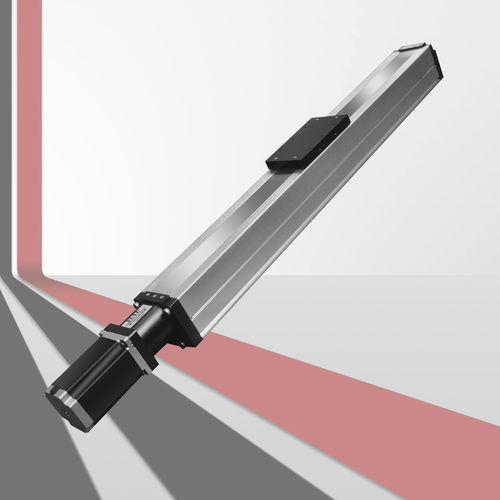

Linear actuator FSL80
electricstepperball screw

linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
stepper, ball screw, lead screw, with servo-motor
Configuration
double-acting
Material
aluminum
Norms
ISO
Protection class
dust-proof, waterproof, robust
Applications
industrial, for medical equipment, for the automotive industry, for robots, for OEM, guide, for sliding gates, for bed adjustment, for solar trackers
Other characteristics
precision, compact, positioning, high-speed, motorized, high-performance, high-speed, slide, high load capacity, high-resistance, guided, for heavy loads, long-stroke, high-force, rapid, custom, single-axis, low-friction, high-torque
Stroke

Min.: 50 mm
(1.969 in)

Max.: 1,200 mm
(47.244 in)

Force

Min.: 20 kgf

Max.: 40 kgf

Speed

Min.: 60 mm/s

Max.: 220 mm/s

Repeatability

0.02 mm
(0 in)

Description

Dust Water Proof Enclosed Ball Screw Linear Module Short Description: Technical Feature FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life. Range of Application It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment. Series: FSL80 Stroke Range: 50mm-1200mm Position Accuracy: 0.02mm Max Speed: 220mm/s Max Load: 40kg Ball Screw: G1610 Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification. Huge Variety of Ready-to-Ship Products Quantity Discounts Starting at 10 pcs custom OEM Solutions Value-Added Services FUYU Technology is a Linear Robotic Manufacturer and established in 2011.. Multi-axis Positioning System can be composed of several linear modules for customized Stroke, Precision, Speed and Load Capacity. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc. As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 12 hours to suggest the best solution for the linear gantry robot.
