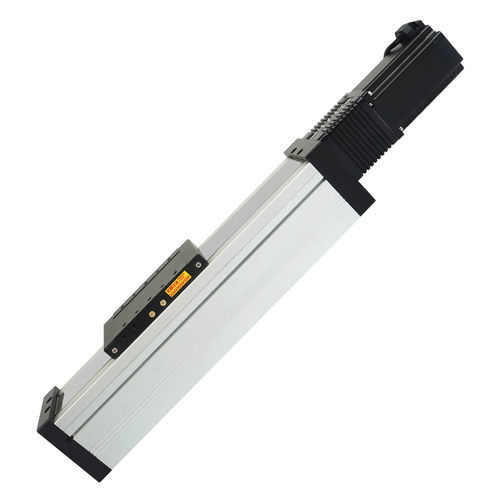

Linear actuator FSL80
electricstepperball screw

linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
stepper, ball screw, lead screw, with servo-motor
Configuration
double-acting
Material
aluminum
Norms
ISO
Protection class
dust-proof, waterproof, robust
Applications
for medical applications, industrial, for medical equipment, for solar trackers, for the automotive industry, for robots, for OEM, guide, for sliding gates, for lifting, for hospital beds, for bed adjustment
Other characteristics
positioning, compact, precision, motorized, high-performance, long-stroke, single-axis, high-speed, high load capacity, high-force, extra-rigid, high-efficiency, slide, for heavy loads, custom, low-friction, high-resistance, guided, high-torque, rapid, high-speed
Stroke

Max.: 1,200 mm
(47.244 in)

Min.: 50 mm
(1.969 in)

Force

Max.: 40 kgf

Min.: 20 kgf

Speed

Max.: 220 mm/s

Min.: 60 mm/s

Repeatability

0.02 mm
(0 in)

Description

Dust Water Proof Enclosed Ball Screw Linear Module Short Description: Technical Feature FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life. Range of Application It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment. Series: FSL80 Stroke Range: 50mm-1200mm Position Accuracy: 0.02mm Max Speed: 220mm/s Max Load: 40kg Ball Screw: G1610 To get professional service, we have some questions for you, please try to answer in your enquiry: 1.What machine do you use the stage on? 2.How long stroke do need the linear be? 3.How is the load and speed need? 4.Do need motor and accessory together? If need OEM or other special requirement, please tell us.

VIDEO

Other FUYU Technology products

Linear Motion Guide Ball - Screw Linear Guide
