Z-axis positioning stage FSL80IS-VM

linearmotorizedelectric

Short Description

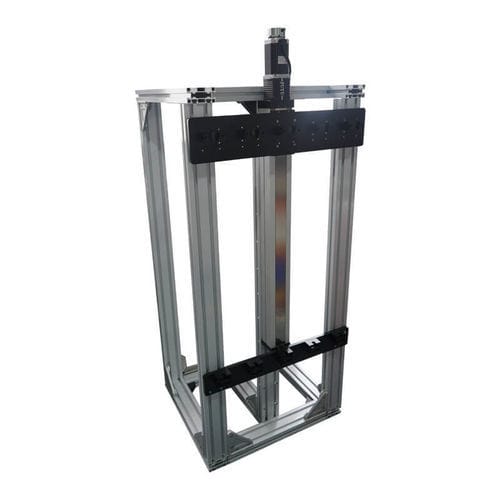

The customer requirement focuses on vertical (up-and-down) spraying and transfer operations. Following R&D design and optimization, the solution uses the FSL80 screw guide rail module to build the frame, providing a stable operating speed of 200 mm/s, an application-example load capacity of 40 kg and a repeatable positioning accuracy of ±0.02 mm (application example). This configuration supplies a stable and precise vertical motion basis for spraying and transfer tasks. The modules deliver three core advantages: full enclosure (dustproof), precise positioning and high load capacity.

Integrated Functionality
The integrated module can perform core operations directly and supports multiple operating modes:

• Picking
• Welding
• Cutting
• Automatic assembly
• Handling
• Integrated spraying / transfer tasks

Product Data (listed on page)

• Series: FSL80IS-VM
• Stroke range: 50 mm – 1050 mm
• Position accuracy (page-listed): 0.01 mm
• Repeatable positioning accuracy (application example): ±0.02 mm
• Stable operating / max speed: 200 mm/s
• Application example load capacity: 40 kg
• Max load (product spec): 70 kg

Additional Product & Company Notes
FUYU Technology is a linear motion manufacturer founded in 2011. Main products include Ball Screw Linear Modules, Belt-driven Linear Guides, Electric Actuators, Positioning Stages and Motion Controllers for Cartesian robots. Typical application sectors: Medical equipment, automated production lines and the electronics industry. Certifications: CE, FCC, RoHS, TUV and ISO9001. The company also holds multiple intellectual property rights.

Technical characteristics / specifications

• Model / Series: FSL80IS-VM
• Stroke range: 50 mm – 1050 mm
• Position accuracy (page-listed): 0.01 mm
• Repeatable positioning accuracy (application example): ±0.02 mm
• Stable operating / max speed: 200 mm/s
• Application example load capacity: 40 kg
• Max load (product spec): 70 kg
• Referenced module type: FSL80 screw guide rail module
• Core features: full enclosure (dustproof); precise positioning; high load capacity
• Typical application modes: picking, welding, cutting, automatic assembly, handling, integrated spraying/transfer tasks
