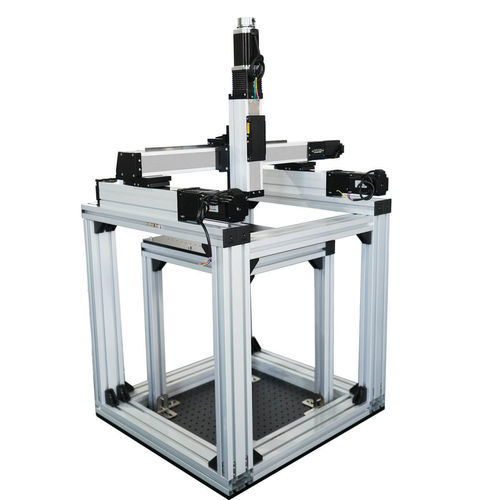

Linear positioning stage FSL60IS-VM

XYZmotorized3-axis

Short Description
Adopting enclosed linear modules as the main structure, it is dustproof, waterproof and debris-proof. The custom middle frame stably carries test samples, and the upper gantry mobile platform realizes multi-dimensional movement, suitable for mounting various visual inspection equipment.

Custom Stroke & Repeatability
Custom stroke: X-axis 200 mm, Y-axis 487 mm, Z-axis 100 mm
Repeat positioning accuracy: ±0.02 mm

Series Specifications

• Series: FSL60IS-VM
• Stroke Range: 50mm-1050mm
• Position Accuracy: 0.01mm
• Max Speed: 200mm/s
• Max Load: 70kg

Features & Applications

• Enclosed linear modules provide dustproof, waterproof and debris-proof operation
• Custom middle frame for stable sample mounting
• Upper gantry mobile platform enables multi-dimensional movement
• Suitable for mounting various visual inspection and testing equipment

Caractéristiques / Spécifications techniques

• Series: FSL60IS-VM
• Custom stroke (example on page): X = 200 mm; Y = 487 mm; Z = 100 mm
• Stroke Range (product series): 50 mm - 1050 mm
• Position Accuracy: 0.01 mm
• Repeat Positioning Accuracy: ±0.02 mm
• Max Speed: 200 mm/s
• Max Load Capacity: 70 kg
• Main structure: enclosed linear modules (dustproof, waterproof, debris-proof)
• Typical applications: visual inspection systems, medical equipment testing, automation lines, electronic industry inspection
