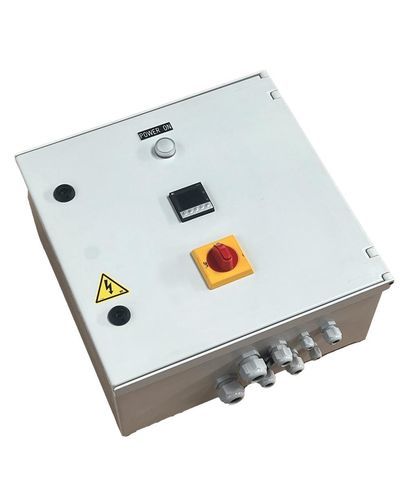

Heating element control panel GALVABOX 2M07-3AA

temperaturewith displaywaterproof

Overview
The GALVABOX 2M07-3AA is a compact single-phase control box engineered for industrial heating applications. It integrates a PID controller with a digital color LCD for accurate temperature regulation and is designed to manage immersion heaters up to 7 kW at 230 V single-phase with IP65 protection.

Technical Specifications

• Supply voltage: 230 V single-phase, 50/60 Hz
• Maximum power: 7 kW (32 A)
• Dimensions: 400 x 400 x 200 mm
• Protection rating: IP65 (EN 60529)
• Control type: PID, self-adaptive with auto-tuning
• Measurement input: 3-wire PT100 sensor
• Safety input: Compatible with float (MTSu) or resistive electrode (NS2) level switches
• Power unit: 40 A thyristor solid-state relay
• Connection: Central terminal block with cable glands for supply, immersion heater, PT100 and level device

Key Benefits

• Easy installation: Compact footprint and centralised terminal block for fast wiring
• Advanced compatibility: Supports multiple immersion heaters and level sensors
• Reliability and safety: Electrical protections including transformer, fuses and automatic level safety reset
• Intuitive display: Large color LCD showing measured and setpoint temperatures simultaneously
• Suitable for corrosive environments: All-plastic enclosure for applications such as electroplating and chemical storage

Main Applications

• Thermal control for industrial immersion heaters up to 7 kW
• Precise temperature regulation in chemical baths
• Use in corrosive environments (chemical industry, electroplating)
• Safe management of tank and vat levels

Safety and Compliance

• Protection rating: IP65 for resistance to demanding environments
• Equipment protection: Level monitoring and automatic shutdown in case of probe breakage or short-circuit
• Standards met: Designed to comply with applicable industrial safety regulations

Options and accessories

• 3-wire PT100 sensor (optional)

Technical specifications

• Supply voltage: 230 V single-phase, 50/60 Hz
• Maximum power: 7 kW (32 A)
• Dimensions: 400 x 400 x 200 mm
• Protection rating: IP65 (EN 60529)
• Control type: PID self-adaptive with auto-tuning, digital display
• Measurement input: 3-wire PT100
• Safety input: Compatible with float (MTSu) or resistive electrode (NS2) level switches
• Power unit: 40 A thyristor solid-state relay
• Connection: Central terminal block with cable glands for power, heater, PT100 and level device
• Electrical protections: Transformer, fuses and automatic level safety reset
• Construction: All-plastic enclosure for corrosive environments
