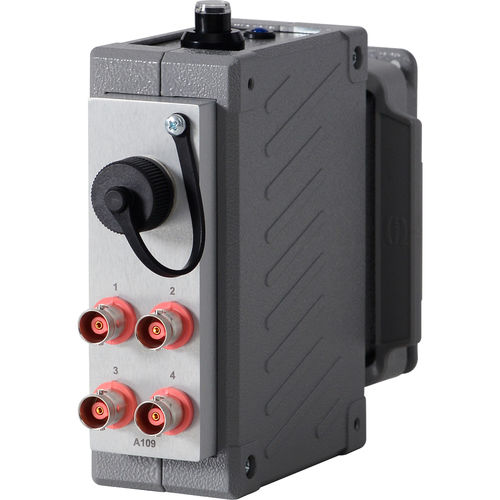

PWM measuring module Q.staxx A109

analog

4 Analog output channels voltage (±10 VDC) or current (0 - 20 mA), configurable per channel DAC-resolution 16 bit 100 kHz each channel Outputs freely scalable 4 digital inputs and outputs configurable as 2 counter, 2 frequency, or 2 PWM inputs, 4 frequency out, 4 PWM output or 4 state out Frequency measurement Frequency measurement up to 1 MHz, direction detection Counter Forward-backward counter, quadrature counter with reference position recognition (reset/enable), up to 1 MHz PWM input Measurement of duty cycle and frequency 3-Way galvanic isolation 500 VDC channel to channel, channel to power supply, and bank
