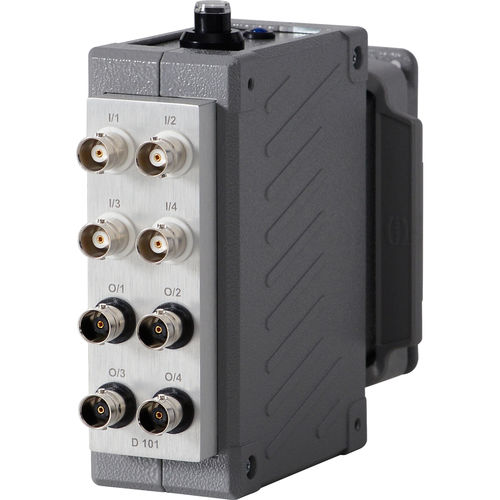

PWM measuring module Q.staxx D101
digital

Add to favorites

Compare this product

Go to the Gantner Instruments website for more information

Characteristics

Technology: PWM, digital

Description

8 digital inputs and 8 digital outputs configurable as counter, frequency and PWM State in and output process- and host controlled Frequency in and output frequency measurement up to 1 MHz (Chronos method), frequency output up to 10 kHz Counter for/backward counter, quadrature counter with reference zero recognition and missing teeth detection, up to 1 MHz PWM in and output measurement of duty cycle and frequency, output with variable frequency and/or duty cycle Time measurement Galvanic isolation I/O-signals ( 4 x 4 I/Os) to power supply and to interface Isolation voltage 500 VDC

Catalogs

No catalogs are available for this product.

See all of Gantner Instruments‘s catalogs
