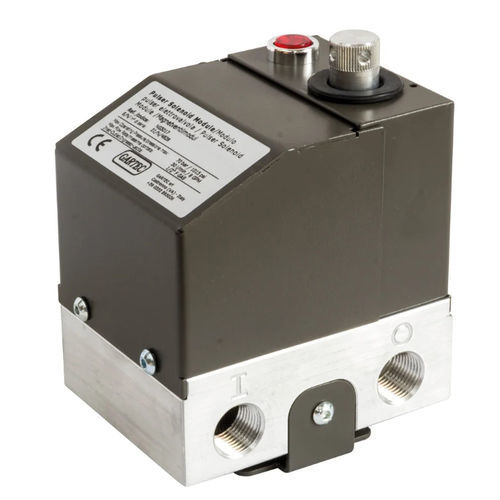

Direct-operated solenoid valve NG5017

2-wayoilpulse

Description
The PSM (Pulser/Solenoid Module) for the OilCop v2.0 oil system integrates four functions in a compact unit: a 24 V solenoid valve for opening and closing fluid flow, a pulse counter for volume measurement, an internal filter to protect against contaminants, and a manual bypass for operation during electrical failures.

Quick technical data

• Flow rate: 30 l/min
• Operating pressure: 70 bar
• Operating fluids: New oil

Features and advantages

• 4-in-1 design: solenoid valve + pulse counter + internal filter + manual bypass in a single module
• Manual bypass enables continued operation in case of electrical failure

Applications

• Automotive
• Industry
• Agriculture

Product specifications (table)
Scope | l/min | 30
Input connection | 1/2" F
Outlet connection | 1/2" F
Volt | 24 V
Watts | 17 W

Dimensions / Weight
Weight | 2.6 kg
Packaging | 160x120x190 mm

Characteristics / technical specifications

• Model: NG5017
• Module functions: solenoid valve, pulse counter, internal filter, manual bypass
• Flow rate: 30 l/min
• Maximum operating pressure: 70 bar
• Operating fluid: New oil
• Input connection: 1/2" F
• Outlet connection: 1/2" F
• Voltage: 24 V
• Power consumption: 17 W
• Weight: 2.6 kg
• Packaging dimensions: 160 x 120 x 190 mm
