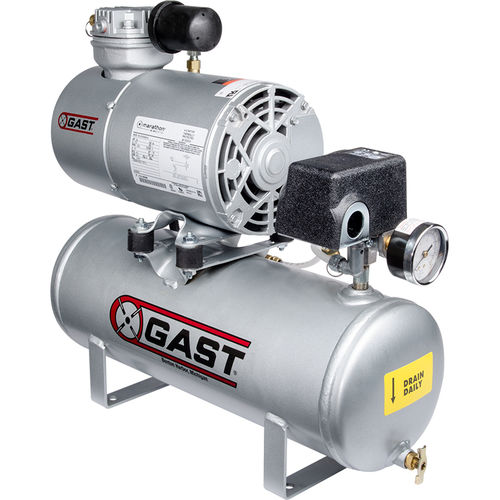

Piston compressor 1HAB-11T-M100X

airelectrically-poweredstationary

Power 1/6 hp ( 0.12 kW ) Max Flow (60 Hz) 1.3 cfm ( 2.1 m3/h ) Max Pressure (60 Hz) 100 psi ( 7.0 bar ) Weight 49 lbs ( 22 kg ) Min Temperature 32 °F ( 0 °C ) Max Temperature 104 °F ( 40 °C )Tank Size2 gal Product Details The rugged 1HAB-11T-M100X Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise, which makes them well suited for noise sensitive environments like laboratory applications. In addition, these units offer high flow, pulse free air - making them ideal for demanding industrial applications requiring consistent air pressure and air flow. Wear items are easy to replace, which allows for a long service life and maximizes uptime. Bearings Maintenance-free sealed for life bearings. Piston Ring The Teflon filled piston ring provides consistent flows throughout the service life of the unit. Durable The compressor has corrosion resistant aluminum heads, pistons, valve plates, stainless steel valves, and an anodized cylinder. Includes Includes Pressure switch, ASME coded receiver tank with manual drain, Pressure safety valve (ASME), Pressure gauge, Shut off valve and check valve.
