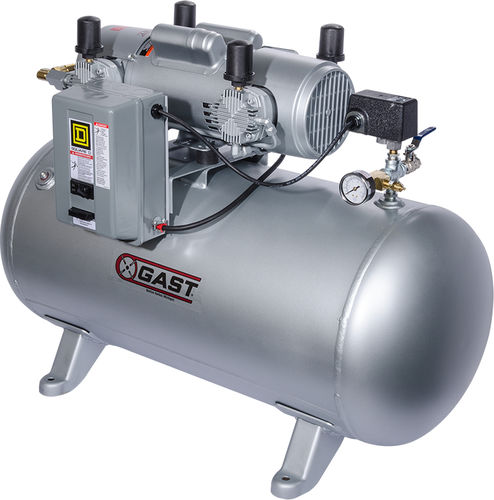

Piston compressor 7HDD-11TA-M750X
airelectrically-poweredstationary

piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for medical applications
Applications
laboratory, discharge, cylinder
Other characteristics
tank-mounted, rugged
Pressure

Min.: 0 bar
(0 psi)

Max.: 7 bar
(101.53 psi)

Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 15.3 m³/h
(540.31 ft³/h)

Power

1.1 kW
(1.5 hp)

Description

Power 1-1/2 hp ( 1.1 kW ) Max Flow (60 Hz) 9.0 cfm ( 15.3 m3/h ) Max Pressure (60 Hz) 100 psi ( 7.0 bar ) Weight 155 lbs ( 70 kg ) Min Temperature 32 °F ( 0 °C ) Max Temperature 104 °F ( 40 °C ) Tank Size 30 gal Product Details The rugged 7HDD-11TA-M750X Series offers oil-less operation to ensure the discharge air remains free of contamination from lubricants. They produce minimal noise, which makes them well suited for noise sensitive environments like laboratory applications. In addition, these units offer high flow, pulse free air - making them ideal for demanding industrial applications requiring consistent air pressure and air flow. Wear items are easy to replace, which allows for a long service life and maximizes uptime. Bearings Maintenance-free sealed for life bearings. Piston Ring The Teflon filled piston ring provides consistent flows throughout the service life of the unit. Durable The compressor has corrosion resistant aluminum heads, pistons, valve plates, stainless steel valves, and an anodized cylinder. Includes Includes Pressure switch, ASME coded receiver tank with manual drain, Pressure safety valve (ASME), Pressure gauge, Shut off valve and check valve.
