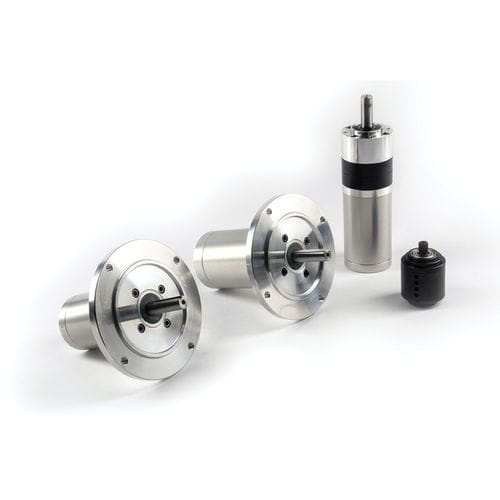

Vane air motor MVP02GSgearhigh-torquelubricated
Add to favorites
Compare this product
Characteristics
- Technology.
- vane, gear
- Other characteristics
- high-torque, lubricated, non-lubricated, with gear reducer
- Torque
Max.: 42.4 Nm
(31.27 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 150 rpm
(942.48 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
750 W
Description
Power 1.0 hp ( 0.75 kW )
Max Speed 150 rpm
Torque @ Max Speed 340 lb-in ( 38.4 Nm )
Max Air Consumption 46 cfm ( 78.0 m3/h )
Speed @ Max Torque 25 rpm
Max Torque 375.0 lb-in ( 42.4 Nm )
Product Details
Introducing Gast MVP Series, advancing the technology of air motor design. For applications that require lower speed or higher torque, MVP air motors can be adapted for gear reduced output.
Lightweight and powerful
Additional gear ratio options available for OEM custom projects. Consult factory for more information.
Mounting options
Hub mount with bolt hole circle. For custom OEM mounting, consult factory.
Versatile vane material
For long life in lubricated or non-lubricated operation
