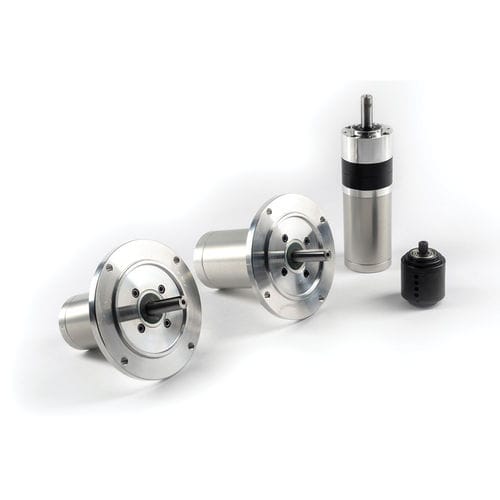

Vane air motor MVP06gearlubricatedflange
Add to favorites
Compare this product
Characteristics
- Technology.
- vane, gear
- Other characteristics
- lubricated, flange, non-lubricated, aluminum
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 10.7 Nm
(7.89 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Power
2,980 W
Description
Power 4.0 hp ( 2.98 kW )
Max Speed 3500 rpm
Torque @ Max Speed 68 lb-in ( 7.7 Nm )
Max Air Consumption 98 cfm ( 167.0 m3/h )
Speed @ Max Torque 500 rpm
Max Torque 95.0 lb-in ( 10.7 Nm )
Product Details
Introducing Gast MVP Series, advancing the technology of air motor design. Available with anodized aluminum motor housing. Versatile vane material for long life in lubricated or non-lubricated operation. MVP offers a variety of flange and hub mounting options.
Lightweight and powerful
Consult factory for more information on gear reduction options
Flange and hub mounting options
NEMA 56C and IEC D80 B5 options available
Versatile vane material
For long life in lubricated or non-lubricated operation
