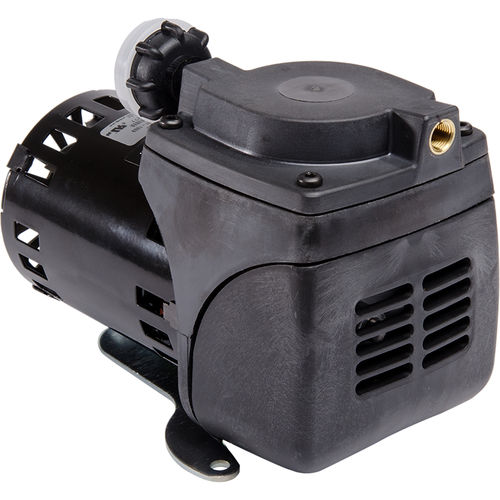

Diaphragm vacuum pump 22D seriesoil-freesingle-stageair compressor
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Number of stages
- single-stage
- Other characteristics
- air compressor
- Ultimate vacuum
Max.: 234 mbar
(3.39 psi)Min.: 0 mbar
(0 psi)- Flow rate
Max.: 1.2 m³/h
(42.38 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
Power 1/20 hp ( 0.04 kW )
Max Flow (60 Hz) 0.7 cfm ( 1.2 m3/h )
Max Pressure (50 Hz) 25 psi ( 1.7 bar )
Max Pressure (60 Hz) 25 psi ( 1.7 bar )
Max Vacuum (60 Hz) 23.0 in-Hg ( 234.0 mbar abs )
Weight 5.1 lbs ( 2 kg )
Min Temperature 40 °F ( 5 °C )
Max Temperature 104 °F ( 40 °C )
