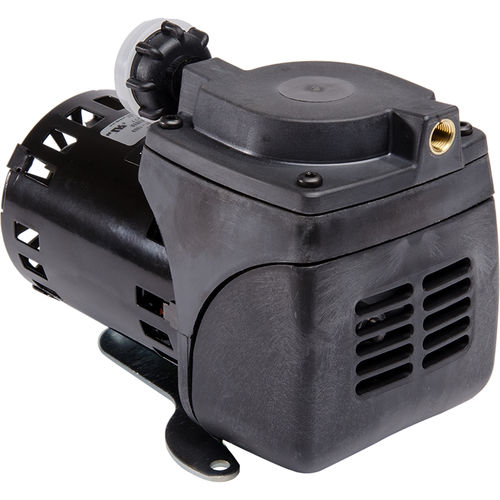

Diaphragm vacuum pump 22D (DC) series
oil-freesingle-stagecompact

diaphragm vacuum pump
diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Number of stages
single-stage
Other characteristics
compact, chemical-resistant, air compressor
Ultimate vacuum

Min.: 0 mbar
(0 psi)

Max.: 251 mbar
(3.64 psi)

Flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 2.2 m³/h
(77.69 ft³/h)

Description

Power 1/8 hp ( 0.09 kW ) Max Flow 1.3 cfm ( 2.2 m3/h ) Max Pressure (DC) 25 psi ( 1.7 bar ) Max Vacuum 22.5 in-Hg ( 251.0 mbar abs ) Weight 4.9 lbs ( 2 kg ) Min Temperature 40 °F ( 5 °C ) Max Temperature 104 °F ( 40 °C ) Product Details The compact, lightweight 22D Series offers oil-less operation and is well suited for noise sensitive environments. It can be mounted in any plane and has a durable design, which contributes to its flexibility and long service life. Additionally, the unit requires minimal power and can be used as a compressor or vacuum pump for maximum versatility. Durability & long life The connecting rod is bonded to the bearing not clamped as in lighter duty pumps. The unit runs at cool operating temperatures, and has corrosion resistant materials – all of which add to the long service life. Superior materials • The 100 Series EPDM (Ethylene Propylene Diene Monomer) valve and diaphragm provide outstanding resistance to heat, ozone, and oxidation. • The 200 Series has Neoprene valves, which provides outstanding resistance to UV, ozone, and oxidation. Easy serviceability Diaphragms and valves are easily field serviceable, which extends the service life of the product and maximizes uptime. Chemically resistant PPS Chemically resistant PPS (Polyphenylene Sulfide) for all other wetted components, which provides maximum chemical, heat and corrosion resistance.

Catalogs

No catalogs are available for this product.

See all of GAST‘s catalogs
