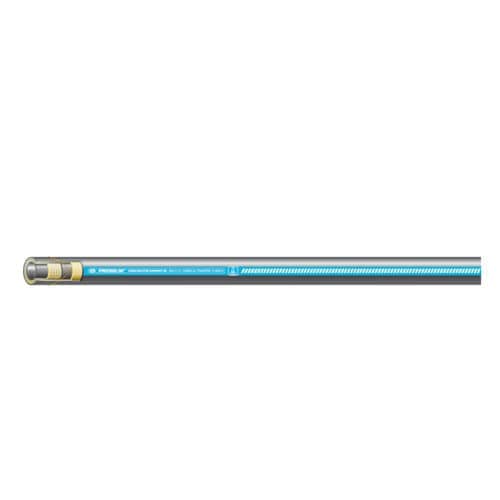

Corrosive fluid hose PREMIUM™ CHEM MASTER UHMWPE SDCSMsyntheticpolyethylene (PE)
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Use
- for corrosive fluids
- Material
- CSM, synthetic, polyethylene (PE)
- Applications
- suction, discharge, transfer, for tanker trucks
- Other characteristics
- anti-static, reinforced, universal, corrugated, spiral
- Inner diameter
Max.: 102 mm
(4.016 in)Min.: 13 mm
(0.512 in)- Outer diameter
Max.: 120.5 mm
(4.744 in)Min.: 23 mm
(0.906 in)- Pressure
1.6 MPa
- Temperature
Max.: 130 °C
(266 °F)Min.: -35 °C
(-31 °F)- Delivered length
40 m
(131'02" )
Description
Very universal suction and discharge hose (SD) for tank truck, barge, ship or storage tank transfer of a variety of corrosive chemical products and acids.
Wire helix for full suction capability.
Design factor: 4:1.
EN 12115.
