Data center hose Data Master™ Megaflex™

coolantEPDMcooling

Overview
Designed for continuous‑operation data centers and other high‑demand cooling systems, the Data Master™ MegaFlex™ cooling hose delivers contaminant‑controlled fluid transfer, tight‑bend routing and flame resistance to support reliable thermal management and reduced downtime.

Key features

• Tube: zinc‑free, peroxide‑cured EPDM formulated to minimize coolant contamination and extend coolant service life.
• MegaFlex™ bend ratio: 1.5:1 MBR to hose ID for tighter bends, simplified routing and easier installation in confined rack and tray spaces.
• Flame‑resistant cover: UL94 V‑0 certified and tested to UL224 VW‑1 standards for enhanced fire safety within data center environments.

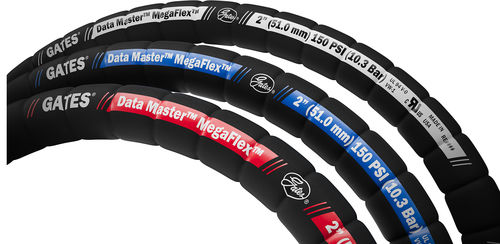

• Color options for system identification: white (general), blue (supply), red (return) to simplify plumbing and reduce installation errors.
• Maximum working pressure: 150 psi (10 bar).

Selected variants

• 20DM1090 | 42170066 | 20DM1090 — 1.25" ID (31.8 mm) | OD 1.65" (41.9 mm) | 150 psi (10 bar)
• 20DM1091 | 42170088 | 20DM1091 — 1.25" ID (31.8 mm) | OD 1.65" (41.9 mm) | 150 psi (10 bar)
• 24DM1090 | 42170067 | 24DM1090 — 1.50" ID (38.1 mm) | OD 1.95" (49.5 mm) | 150 psi (10 bar)
• 32DM1090 | 42170068 | 32DM1090 — 2.00" ID (50.8 mm) | OD 2.40" (61.2 mm) | 150 psi (10 bar)
• 48DM1090 | 42170069 | 48DM1090 — 3.00" ID (76.2 mm) | OD 3.50" (87.6 mm) | 150 psi (10 bar)

Resources
Data Master™ Data Center Cooling Hose brochure available (manufacturer product sheet).

Technical specifications

• Tube material: zinc‑free, peroxide‑cured EPDM (formulated to reduce coolant contamination).
• MegaFlex™ bend ratio: 1.5:1 MBR to hose ID for improved flexibility and routing.
• Cover: flame‑resistant, UL94 V‑0 certified; tested to UL224 VW‑1.
• Maximum working pressure: 150 psi (10 bar).
• Typical inside diameters: 1.25" (31.8 mm), 1.50" (38.1 mm), 2.00" (50.8 mm), 3.00" (76.2 mm).
• Typical outside diameters: 1.65" (41.9 mm), 1.95" (49.5 mm), 2.40" (61.2 mm), 3.50" (87.6 mm).
• Color coding: white (multi‑purpose), blue (supply), red (return) for system differentiation.
